Waterproof 16×12W RGBW LED PAR Light IP66

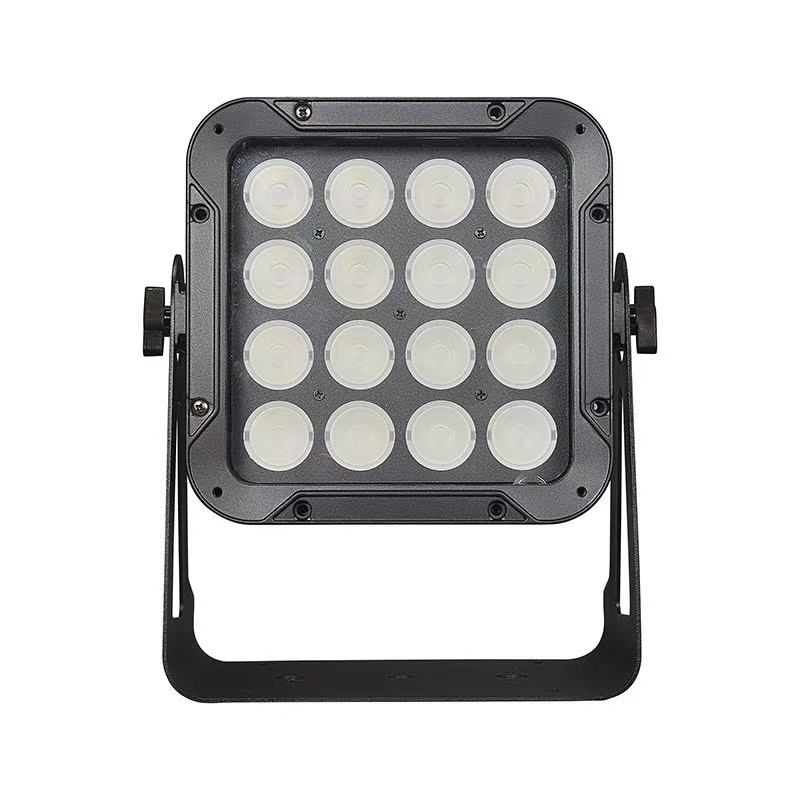

Beam Angle: 15° / 20° / 25° / 40° (Optional)

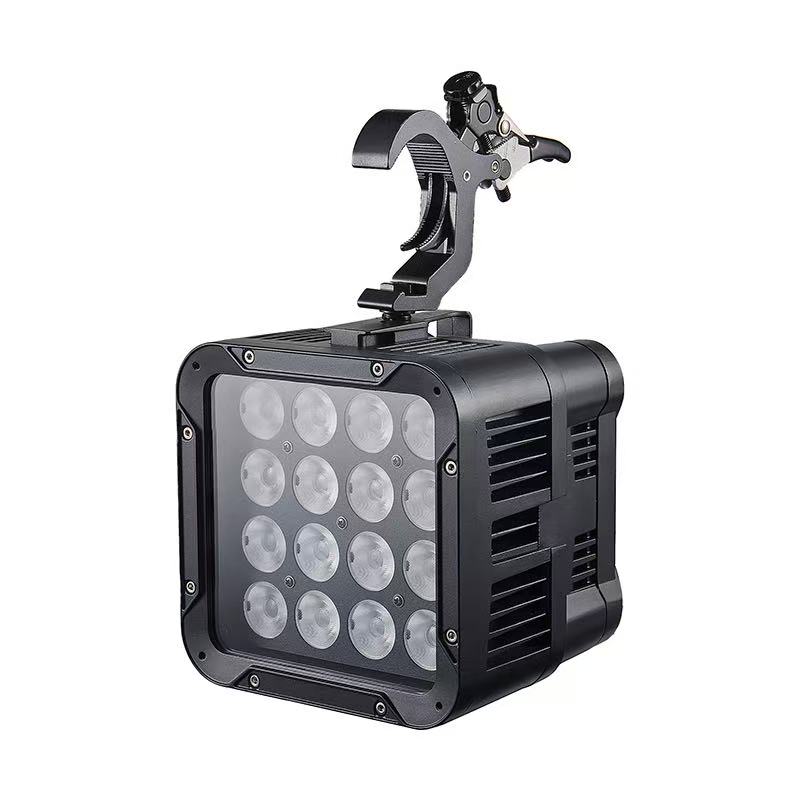

Protection Rating: IP66 Waterproof / Weatherproof

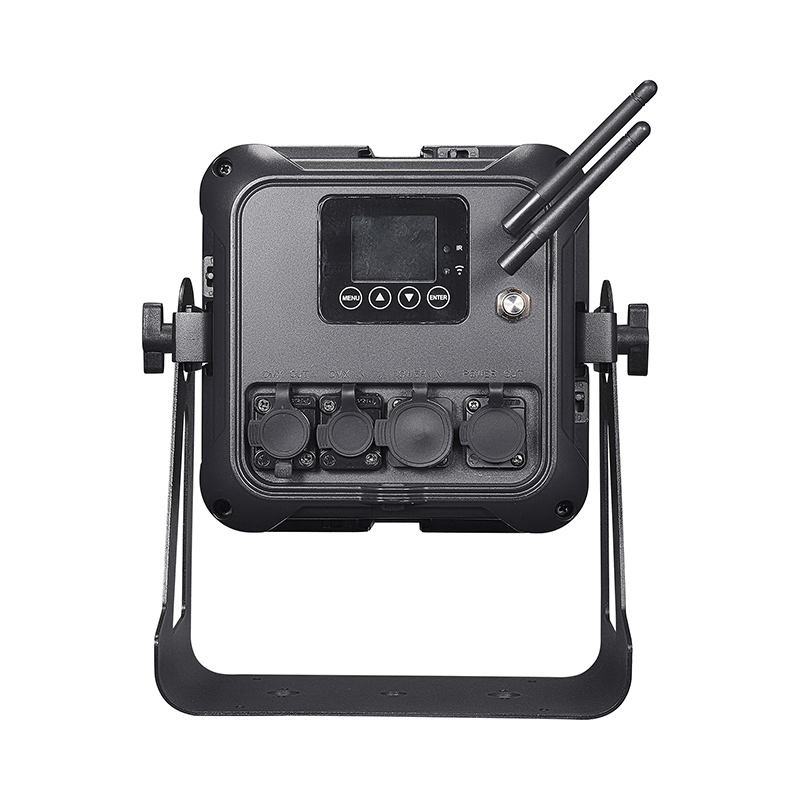

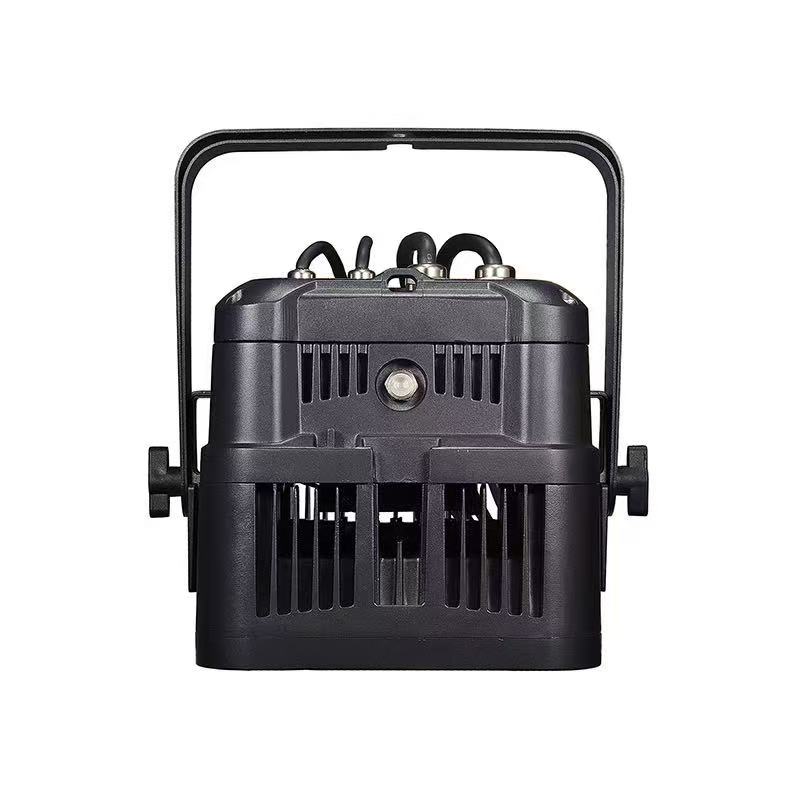

Housing: Die-cast Aluminum Body with Fixture Linking Support

Waterproof 16×12W RGBW LED PAR Light IP66

Waterproof 16×12W RGBW LED PAR Light with 16 high-power LEDs, 15°–40° lens, 16.7M colors. IP66 die-cast housing ensures stable outdoor use with flexible fixture linking.

Brand :
NOWLIT
Brand model :
QR-L16
Input voltage :
AC100–240V, 50/60Hz
Light source :
16 × 12W RGBW 5050 Cree LEDs
Net weight :
4.7 kg
Protection level :
IP66

Inquiry Now

Function Description

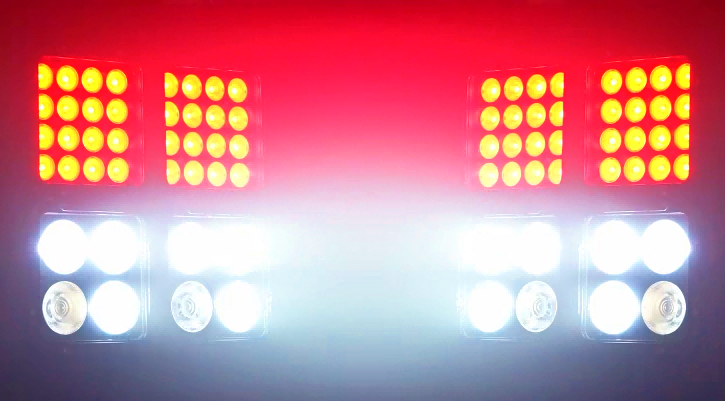

Waterproof 16×12W RGBW LED PAR Light is equipped with 16 × 12W high-output RGBW LEDs, delivering stable and reliable performance, ideal for stage wash and ambient lighting applications. With optional 15°–40° lens systems and 16.7 million RGBW color mixing, it produces smooth, even wash effects with rich and vibrant color expression. Built with an IP66-rated one-piece die-cast aluminum housing, the fixture ensures stable operation in outdoor and complex stage environments, while supporting horizontal and vertical fixture linking for flexible stage lighting setups.

Technical parameters

Light Source System

Light Source: 16 × 12W RGBW 5050 Cree LEDs
LED Lifetime: 50,000 hours

Optical System

Lens Material: High-transmittance Acrylic Lens,15°/ 20°/ 25°/ 40°(Optional)

Color System

RGBW Color Mixing System
16.7 Million Color Effects

Effects

Independent Electronic Linear Dimming: 0–100%
Independent Electronic Strobe: 1–30 Hz
Random Strobe Effect
Pulse Strobe Effect
Synchronous / Asynchronous Strobe Modes

Electrical & Control

Input Voltage: AC100–240V, 50/60Hz
Power Supply: 32V / 12A, 250W Switching Power Supply
Power Consumption: 163W

Control & Programming

Control Protocol: DMX512, RDM
Control Modes: DMX512, Master/Slave
DMX Channels: A001: Front Section – 8CH, D001: Rear Section – 8CH, Default: Front Section – 8CH (Digital Display Setting)
