Home LED Wash Lights

7pcs 60W LED Bee Eye RGBW Moving Head

QR-LM760A 7x60W RGBW 4-in-1 LED Moving Head Light Beam Effect

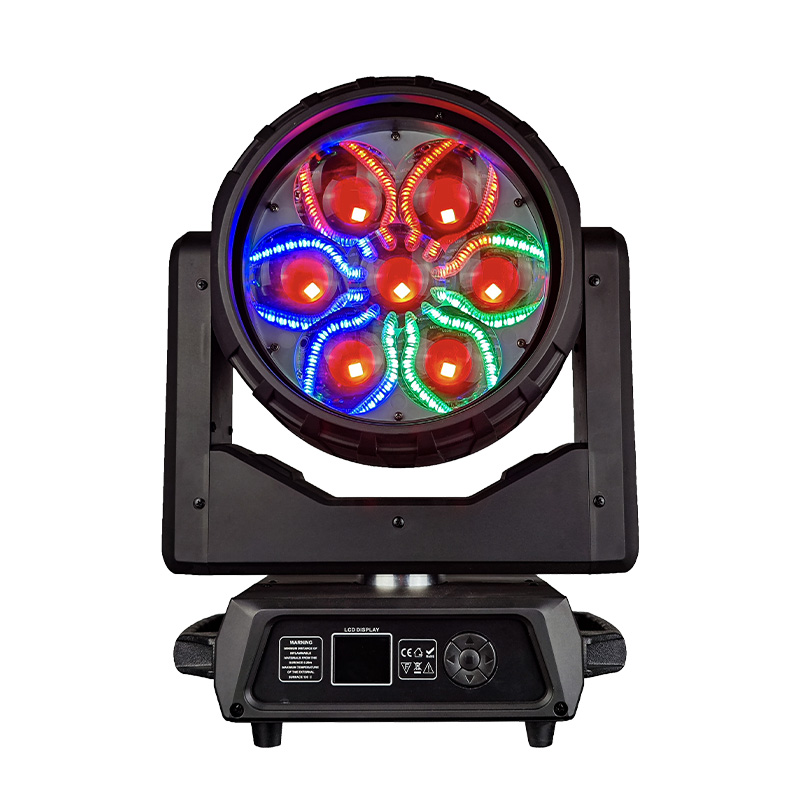

QR-LM760A 7x60W RGBW 4-in-1 LED Moving Head Light Front View

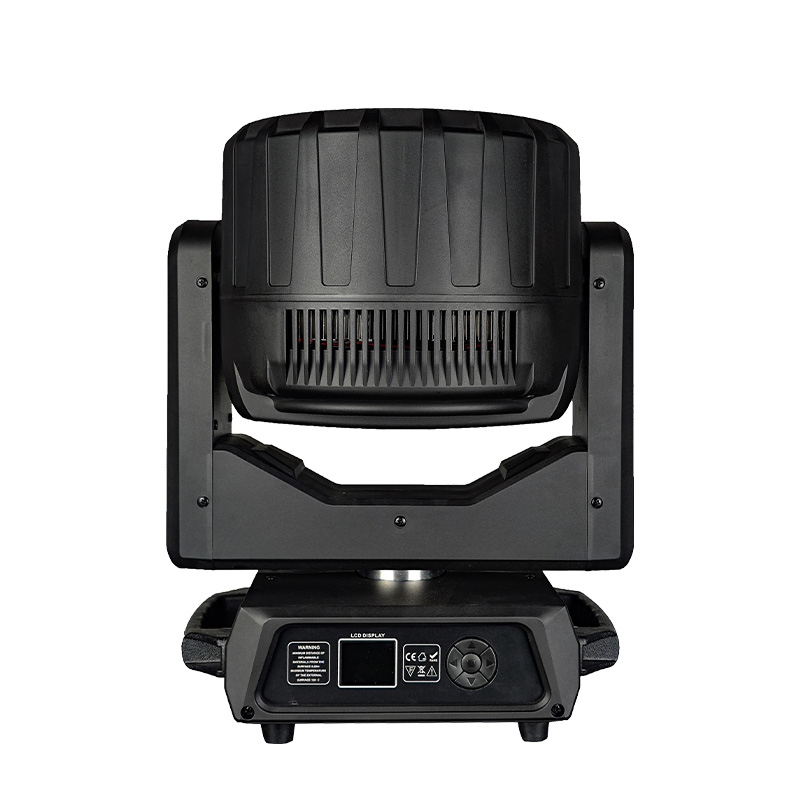

QR-LM760A 7x60W RGBW 4-in-1 LED Moving Head Light Rear View

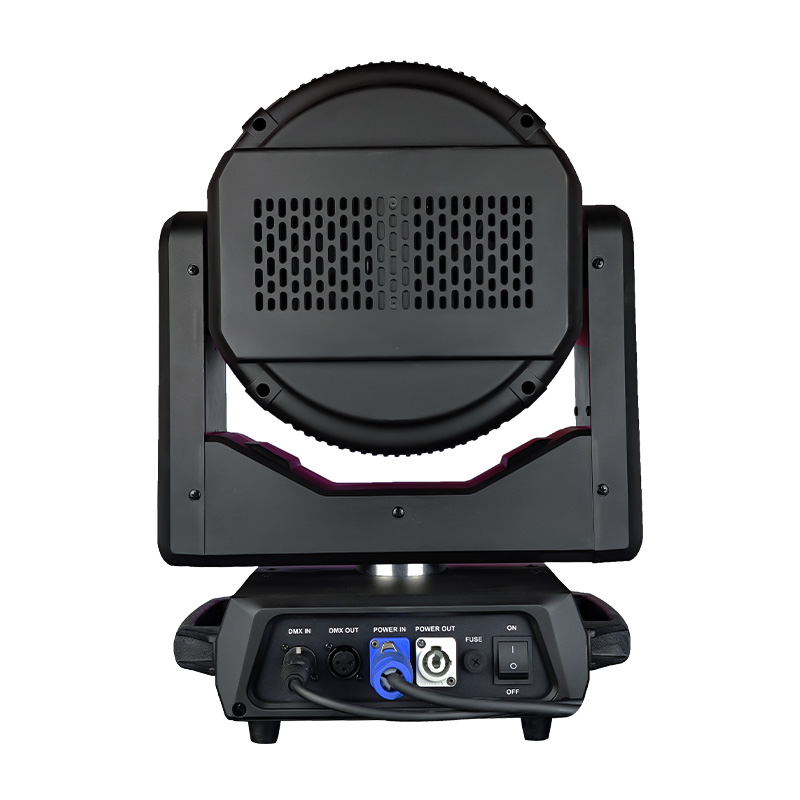

QR-LM760A 7x60W RGBW 4-in-1 LED Moving Head Light Back View

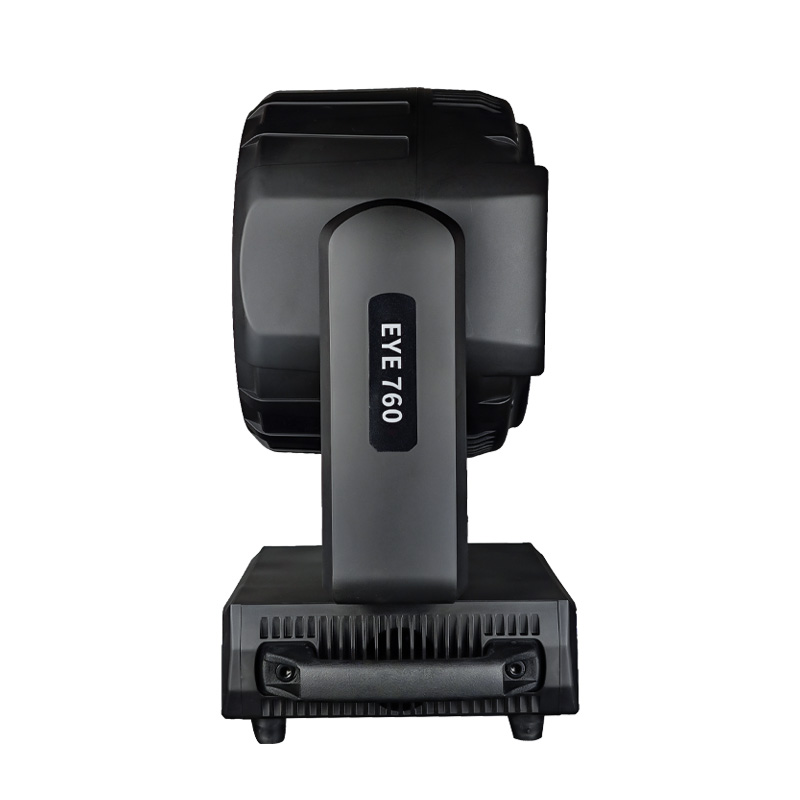

QR-LM760A 7x60W RGBW 4-in-1 LED Moving Head Light Side View

7pcs 60W LED Bee Eye RGBW Moving Head

QR-M760A 7×60W RGBW moving head with 12×3W Aura filament pixels, 7°–45° zoom, dynamic beam, wash and pixel effects for concerts, touring and live events.

Brand model :
QR-M760A
Input voltage :
AC 100–240V, 50/60Hz
Light source :
7 × 60W High-Brightness RGBW 4-in-1 LEDs
Channel mode :
20 / 21 / 30 / 36 / 57 / 78 / 93CH
Protection level :
IP20
Product size :
35.6 × 28 × 45 cm
Net weight :
14.6 kg

Inquiry Now

Function Description

QR-M760A 7 × 60W RGBW 4-in-1 LED Moving Head combines powerful beam output with a distinctive Aura filament pixel effect, creating a dynamic mix of focused beams, smooth washes, and eye-catching pixel visuals.

Featuring 12 × 3W RGB filament pixel strips and a 7°–45° motorized zoom, it delivers everything from sharp aerial beams to wide, uniform washes. Built-in pixel macros, chase, flow, cyclone, and other dynamic effects add movement and depth to every show.

Designed for concerts, touring, live events, stages, clubs, and entertainment productions.

Technical parameters

Light Source System

Light source: 7 × 60W High-Brightness RGBW 4-in-1 LEDs
Filament backlight: 12 × 3W RGB 3-in-1 LED Filament Pixel Strips
LED lifetime: ≥20,000 hours

Optical System

Beam angle: 7–45°

Color System

Color: RGBW 4-in-1 Color Mixing System
Color effects: High-brightness, high-saturation RGBW color mixing with smooth color and white tones

Pan &Tilt

Pan: 540° + 16-bit Fine Adjustment
Tilt: 270° + 16-bit Fine Adjustment

Effect

Dimming: 0–100% linear dimming with 4 dimming curves: Linear / Square / I-Square / S-Curve
Strobe: 1–25 flashes/sec with multiple strobe effects
Optical effects: Smooth and uniform wash effects with Aura filament pixel effects
Effect macros: Multiple built-in macro effects with control of foreground color, background color, speed, and direction
Pixel effects: Beam pixel and Aura filament 3D video mapping
Dynamic effects: High-speed scanning, tilt, zoom, chase, flow, cyclone, and other dynamic effects
Virtual color wheel: Dynamic virtual color wheel effects
Filament pixel: Simulated filament pixel effects

Electrical & Interface

Input voltage: AC 100–240V, 50/60Hz
Rated power: 550W

Control & Programming

Control modes: DMX512, Auto Run, RDM
Control channels: 20 / 21 / 30 / 36 / 57 / 78 / 93CH
Display: Chinese/English Display
Temperature management: Intelligent temperature control with automatic fan speed adjustment, overheat protection, and intelligent de-fogging system

Fixture Structure

Protection rating: IP20
Flame-retardant engineering plastic housing

Size & Weight

Product size: 35.6 × 28 × 45 cm
Net weight: 14.6 kg

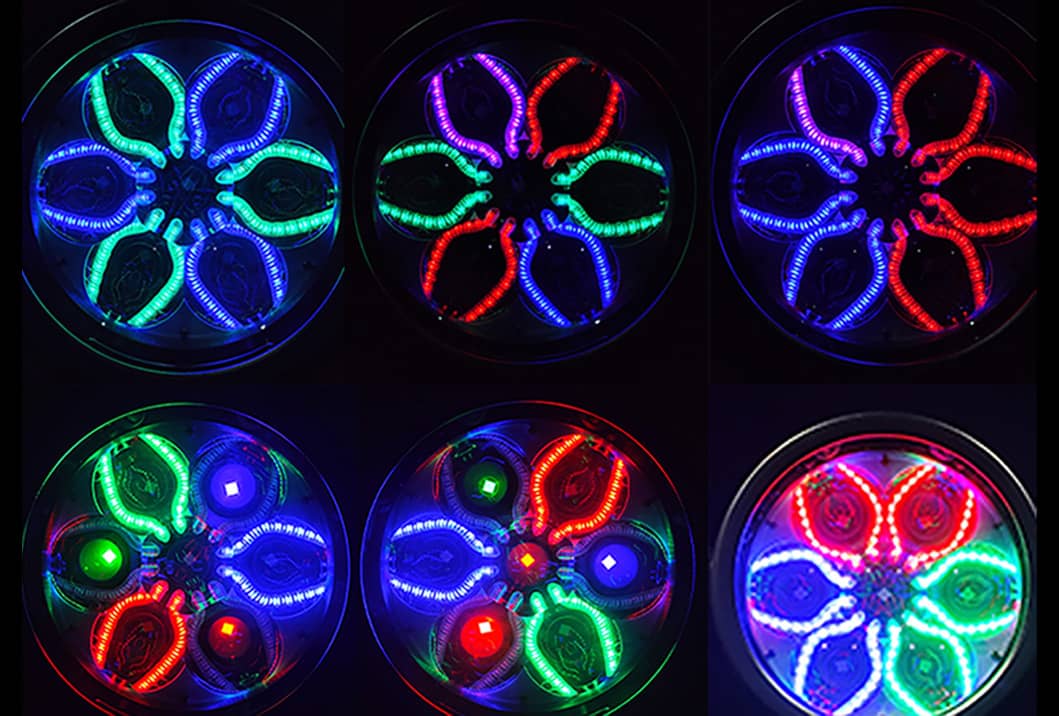

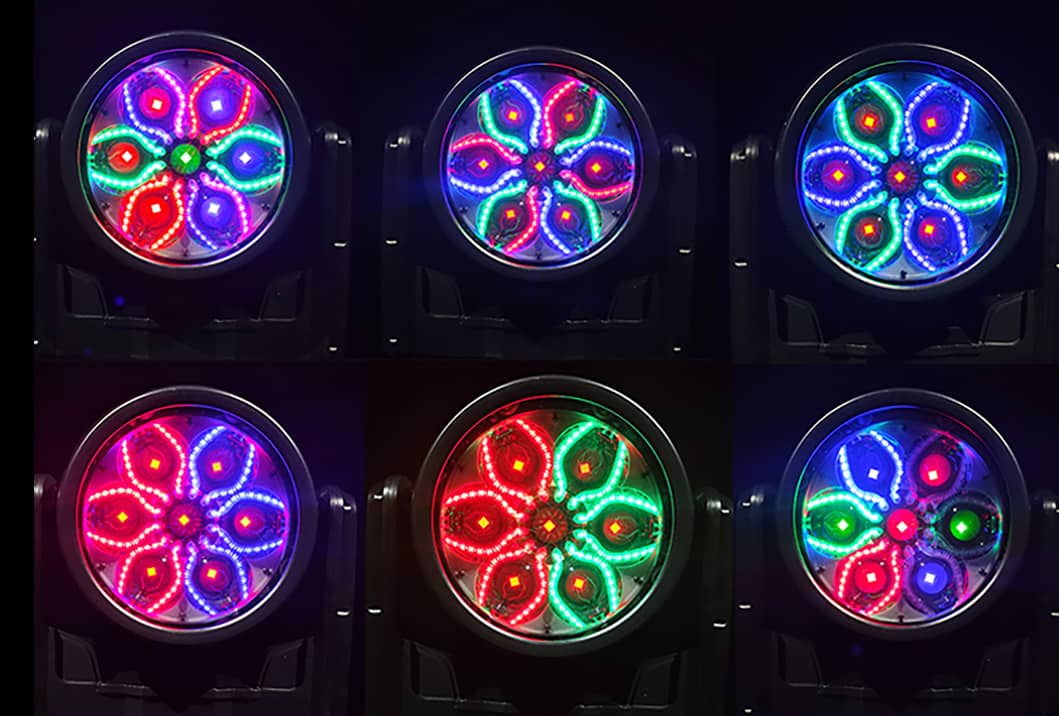

Effects

FAQ

Q1: What is the light source?

A: It uses 7 × 60W RGBW 4-in-1 LEDs with 12 × 3W RGB filament pixel strips.

Q2: What is the zoom range?

A: The motorized zoom range is 7°–45°.

Q3: What are the Aura filament pixels used for?

A: They create dynamic Aura, pixel, and 3D visual effects around the main beam.

Q4: What effects does it support?

A: It supports beam, wash, pixel, chase, flow, cyclone, strobe, and built-in macro effects.

Q5: Where can it be used?

A: It is suitable for concerts, touring, live events, clubs, stages, and entertainment productions.
