IP66 Square 4 Eyes COB CW+WW LED Par Light

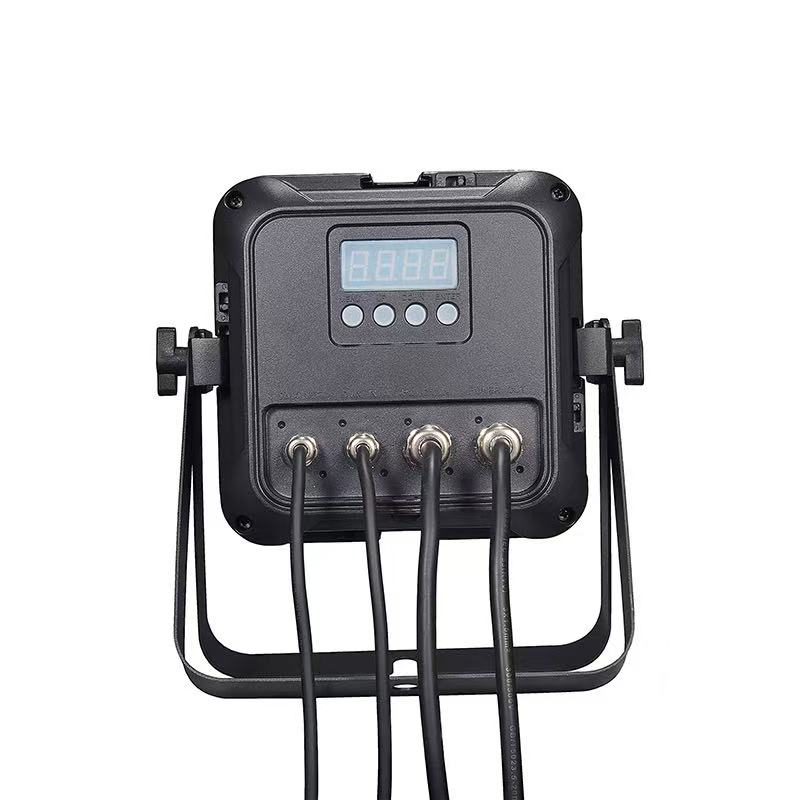

IP66 square 4 eyes COB LED par light rear view with power and DMX ports

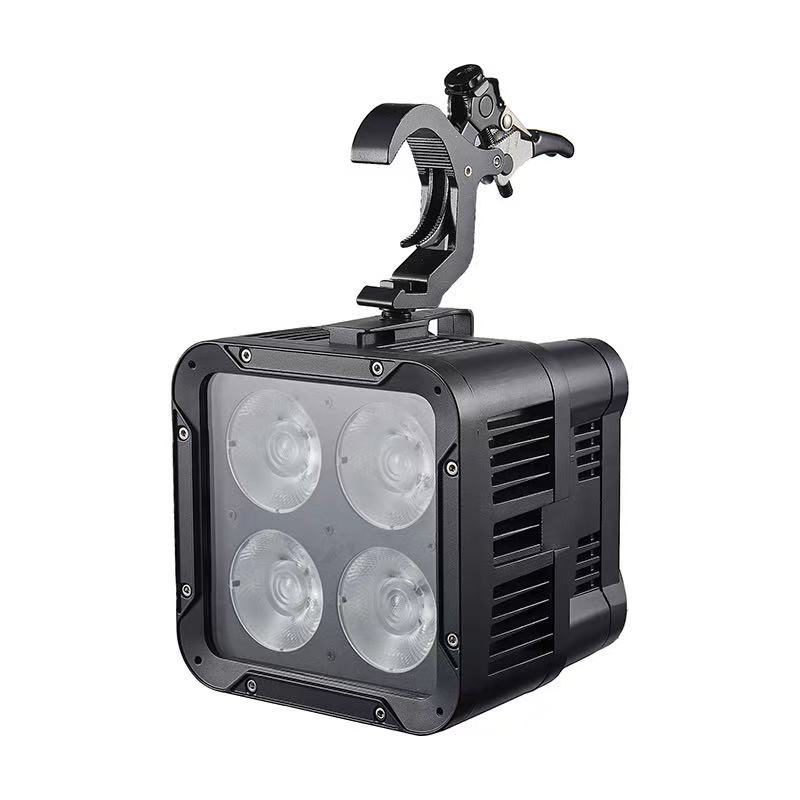

IP66 square 4 eyes COB LED par light front view 4 lens high output stage lighting

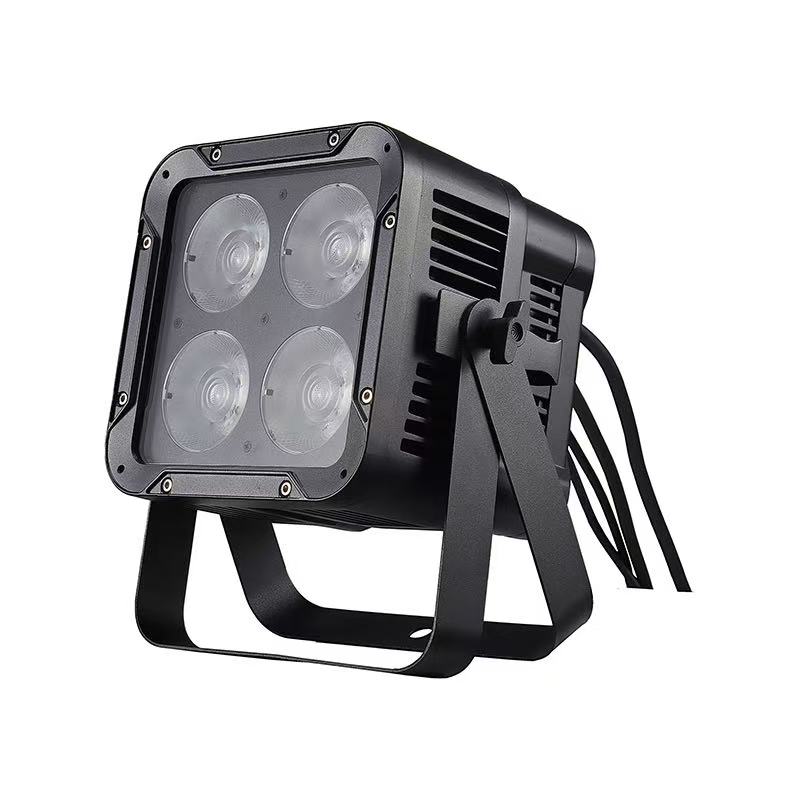

P66 square 4 eyes COB LED par light adjustable bracket stage wash lighting fixture

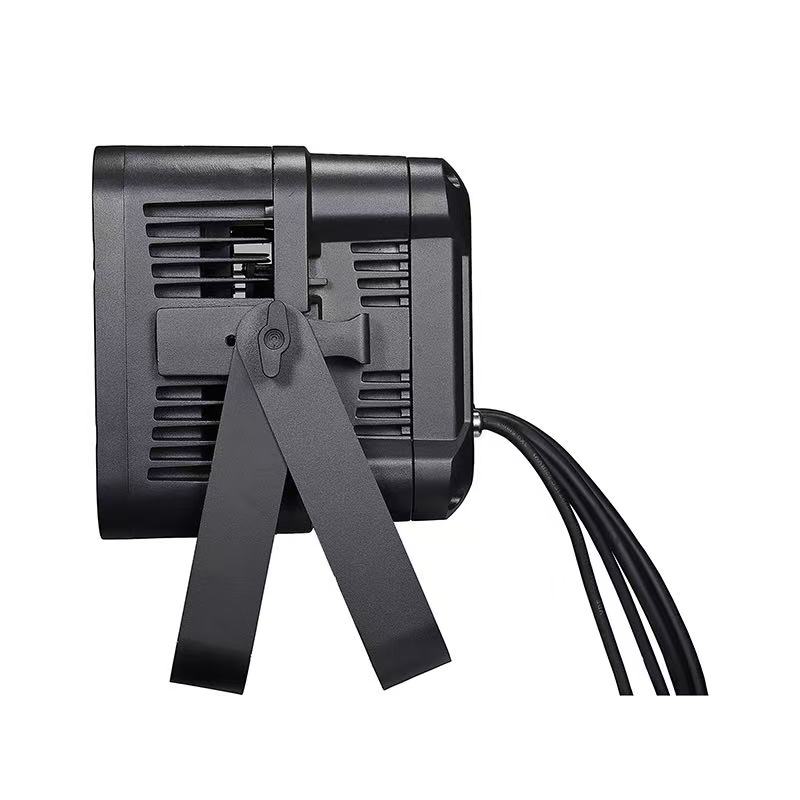

IP66 square 4 eyes COB LED par light back panel detail heat dissipation design

IP66 Square 4 Eyes COB CW+WW LED Par Light

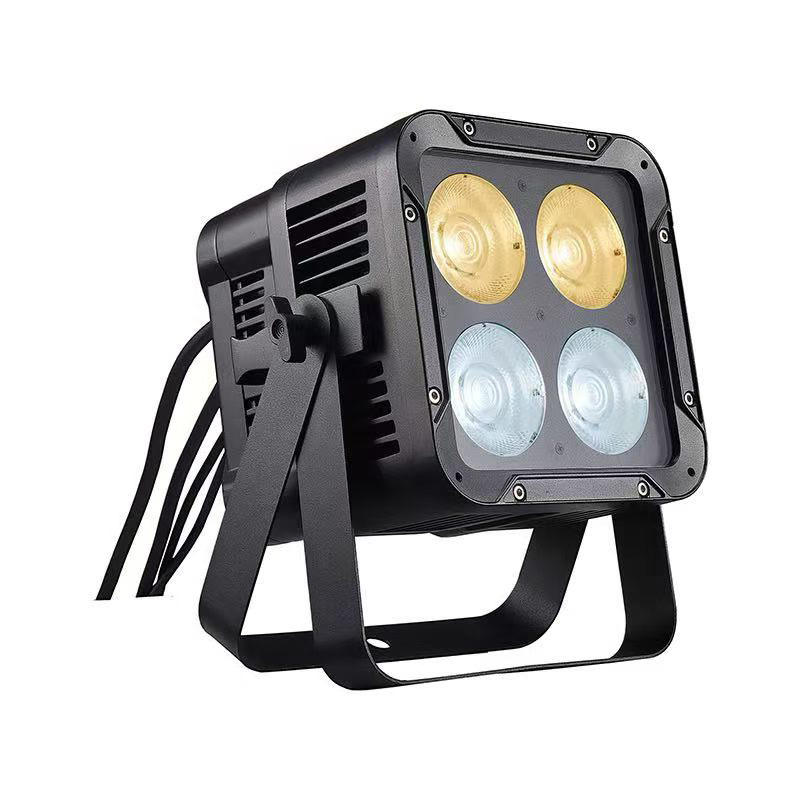

IP66 Square 4 Eyes COB CW+WW LED Par Light delivers smooth 2700K–6500K white wash with four bi-color COB LEDs for stage, theatre, studio and outdoor lighting.

Brand model :
QR-C400
Input voltage :
AC100–240V, 50/60Hz
Light source :
4 × 70W Bi-color COB LEDs
Net weight :
4.7 kg
Protection level :
IP66
Channel mode :
2 / 4 / 8 / 12 CH

Inquiry Now

Function Description

The IP66 Square 4 Eyes COB CW+WW LED Par Light features four high-output bi-color COB LEDs, delivering smooth white light mixing, uniform wash coverage, and precise 2700K–6500K color temperature adjustment. Built for reliable indoor and outdoor performance, it is ideal for stages, theatres, TV studios, concerts, and architectural lighting.

Technical parameters

Light Source System

Light Source: 4 × 70W Bi-color COB LEDs
Color Temperature Range: 2700K–6500K
LED Lifetime: 50,000 hours

Optical System

Lens: High-transmittance optical acrylic lens ,15° / 25° / 40° (Optional)

Color System

Light Color: Warm White / Cool White
Color Temperature Adjustment: 2700K–6500K Linear Adjustment

Effects

Electronic Linear Dimming: 0–100%
Electronic Strobe: 1–30Hz
Random Strobe
Pulse Strobe
Synchronous / Asynchronous Strobe

Electrical & Control

nput Voltage: AC100–240V, 50/60Hz
Power Supply: 38V / 250W
Power Consumption: 188W

Control & Programming

Control Protocol: DMX512, RDM
Control Modes: DMX512, Master/Slave
DMX Channels: 2 / 4 / 8 / 12 CH
Display: Digital Display

Fixture Structure

Protection Rating : IP66
Housing Material: One-piece Die-cast Aluminum Alloy Housing
High-efficiency aluminum heat dissipation structure
Silent 12V cooling fan
Single-bracket handle design
Floor mounting
Hanging installation

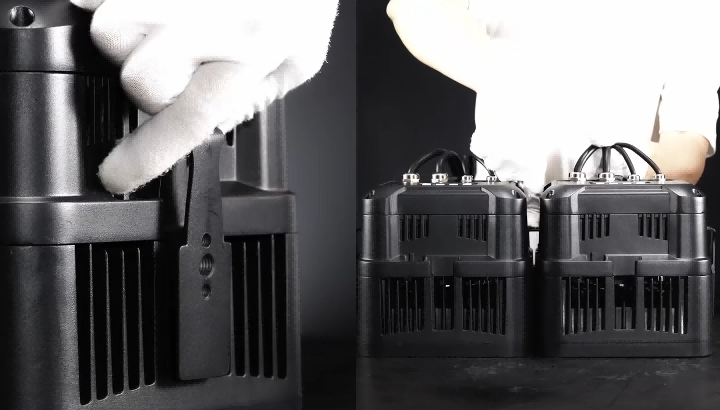

Supports horizontal and vertical splicing installation

Dimensions & Weight

Net Weight: 4.7 kg
Gross Weight: 5.0 kg
