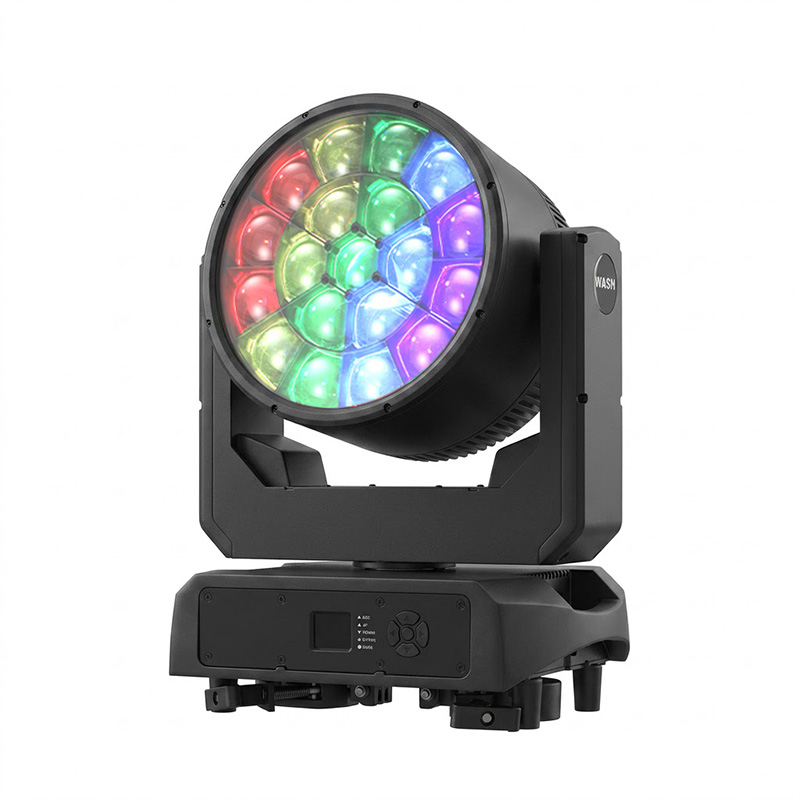

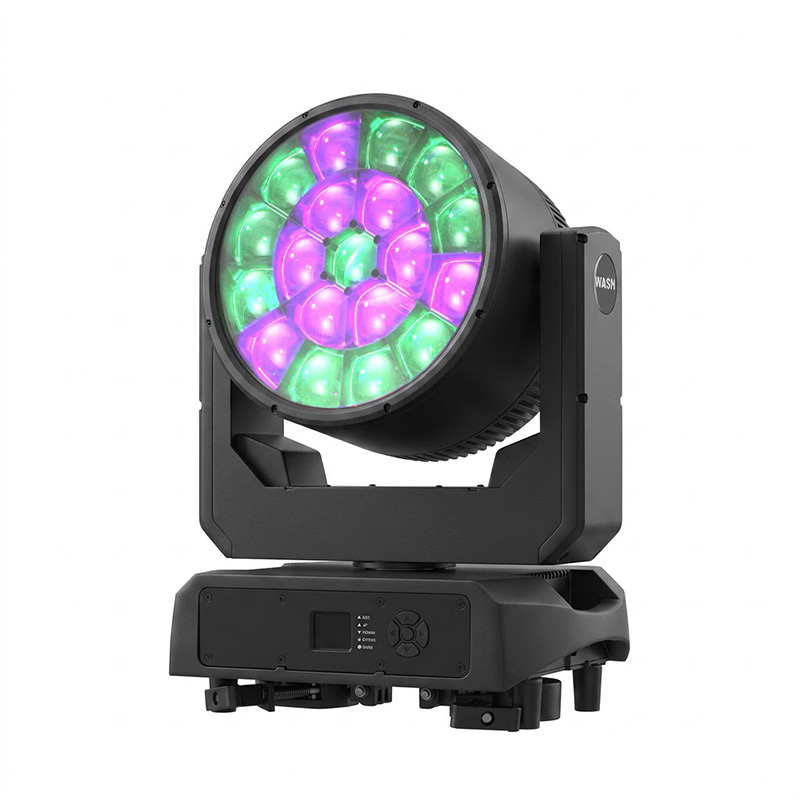

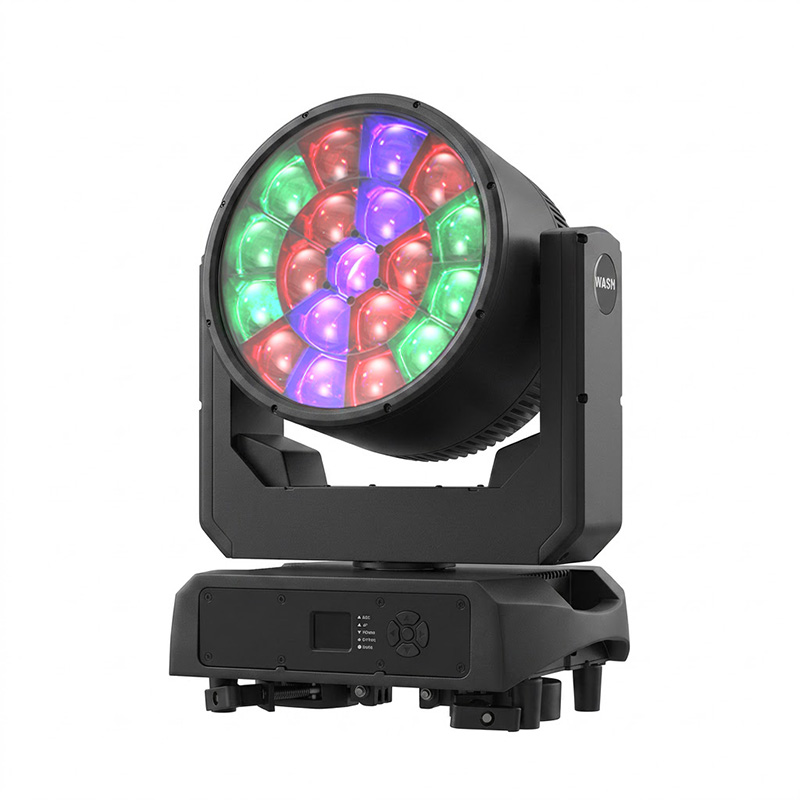

19×60W IP65 Bee-Eye Zoom Moving Head

Light Source System

• Main light source: 19 × 60W RGBW LEDs
• LED lifetime: >20,000 hours

Optical System

• Beam angle: 4–43°

Color System

• Color: RGBW 4-in-1 Color Mixing System
• Color macros: Multiple Preset Color Macros and Effect Programs

Pan &Tilt

• Pan: 540°, resolution: 2.11°/step; fine adjustment: 0.008°
• Tilt: 270°, resolution: 0.86°/step; fine adjustment: 0.0034°

Effect

• Effect macros: Static effect macros and dynamic effect macros
• Strobe: 1–25Hz electronic strobe and multiple random strobe effects
• Dimming: Full-range dimming with 256 levels
• Lens rotation: 360° continuous rotation of the optical lens, enabling variable kaleidoscope, hourglass-waist and other effects
• Individual pixel control: Each LED can be individually controlled for color changes

Electrical & Interface

• Rated power: 1050W
• Input voltage: AC 100–240V, 50/60Hz
• Signal connectors: 3-pin or 5-pin XLR input/output

Control & Programming

• Channel modes: 21/23/35/78/92/97/99 channels; DMX + Art-Net: 11 + 76 channels
• Protocols: DMX512 / Auto run / Sound active / Manual / RDM / Art-Net (optional)
• Software updates can be performed conveniently via DMX signal
• Silent fan with intelligent speed control

Fixture Structure

• IP rating: IP65

Size & Weight

• Fixture dimensions: 41.8 × 31.9 × 52.2 cm
• Net weight: 27 kg
