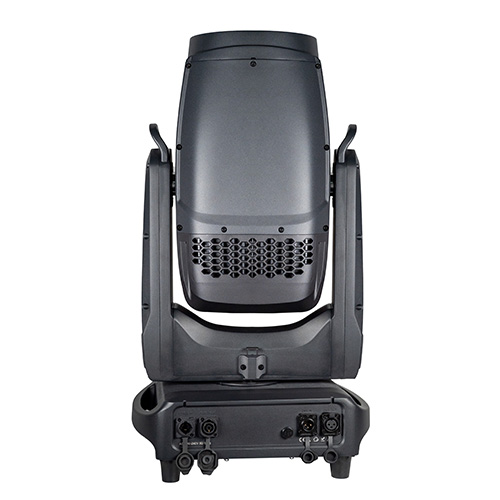

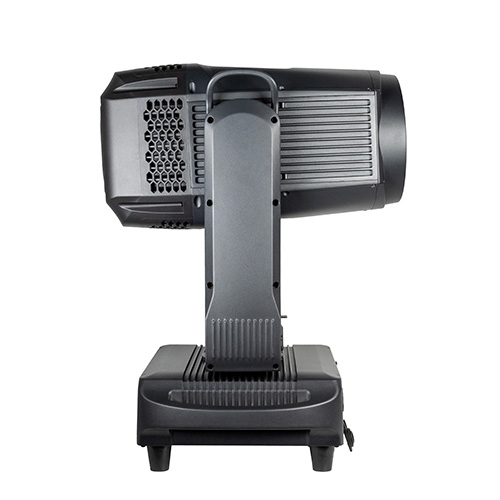

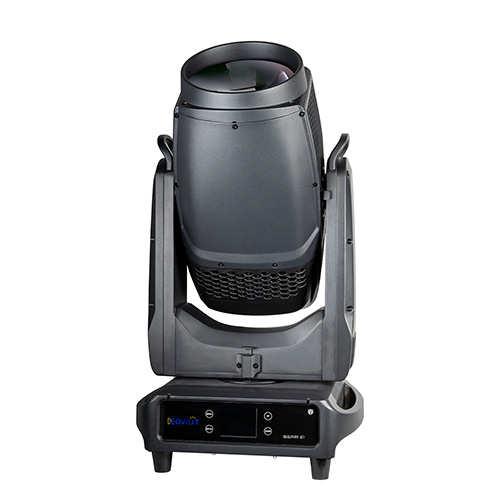

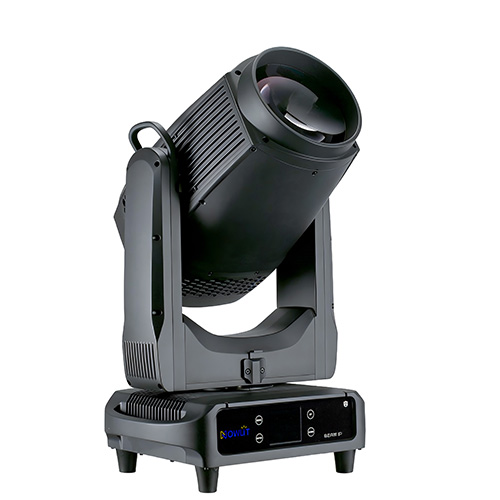

High Power 420W IP66 Waterproof Beam Moving Head Light

High Power 420W IP66 Waterproof Beam Moving Head Light

Professional IP66 moving head light,Features CMY color mixing, CTO, dual color wheels, rainbow, 17 metal gobos, 3 prisms, strobe, frost. Magnesium alloy body.

Brand model :
QR-WB420B
Input voltage :
AC100V-240V, 50/60Hz
Light source :
PHILIPS MSD Silver 420W/LL
CRI :
≥70
Color wheel :
Two color discs+CMY+CTO
Product size :
68.4 × 38.6 × 29 cm
Net weight :
25 kg
Protection level :
IP66
Channel mode :
21CH

Inquiry Now

Function Description

This professional IP66 waterproof moving head light is equipped with a high-performance PHILIPS MSD Silver 420W light source, delivering a sharp 1.7° beam angle and stable 7000K color temperature, ideal for outdoor events. It features a professional color system with linear CMY color mixing, CTO color temperature adjustment, and dual color wheels, supporting split color and dynamic rainbow effects. The fixture includes 17 metal gobos, three independent rotating prisms, adjustable strobe, and frost effect for rich beam expressions. Built with a durable magnesium alloy housing and IP66 waterproof rating, it is perfect for outdoor concerts, festivals and touring shows.

Technical parameters

Light Source System

Buld: PHILIPS MSD Silver 420W/LL
Color temperature: 7000K
Lamp source life: 3,500 hours

Optical System

Beam range: 1.7°
Lens diameter：180 mm
CRI: ≥70

Color System

Linear CMY Color Mixing System
Linear CTO color temperature correction(2700K–6700K)
Color wheel 1: 6 fixed colors
Color wheel 2: 6 fixed colors
Split color effect available
Rainbow effect: dynamic multicolor effect

Gobo system

Fixed gobos: 17 metal gobos + white, with variable speed shake effect

Effect

3 prisms (8-facet prism,8+8+8-facet prism, 6-row prism) each can rotate independently in both directions
Dimming: 0–100% linear dimming
Strobe: 1–20 flashes/sec, adjustable speed
Frost: 1 independent frost filter with wash effect

Pan&Tilt

Pan: 540°
Tilt: 270°
Auto reposition with 16-bit precision control
Step/linear color switching with split color effect

Electrical & Interface

Rated power: 600W
Input voltage: AC 100–240V, 50/60Hz
Signal interface: DMX 3-pin in/out + 5-pin in/out

Control & Programming

Control channels: 21CH
Control modes: DMX512, Master/Slave, Auto, RDM
Display: LCD display with 4 touch buttons
Power saving: Automatic sleep mode when signal is lost
Software upgrade: via DMX signal cable
Cooling system: Low-noise variable speed fan

Fixture Structure

Housing: High-end magnesium alloy construction
Working temperature: -10°C to 40°C
IP rating: IP66

Size & Weight

Product size: 68.4 × 38.6 × 29 cm
Net weight: 25 kg
