Home Beam Lights

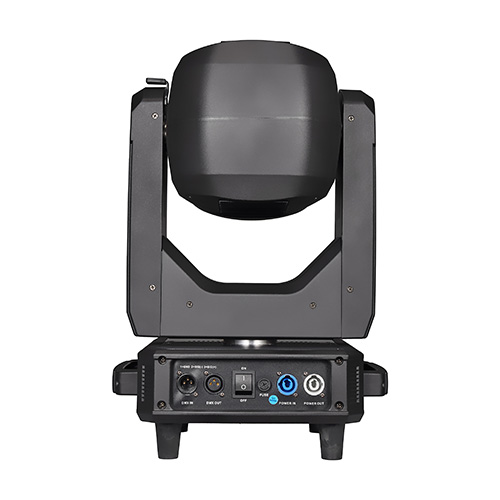

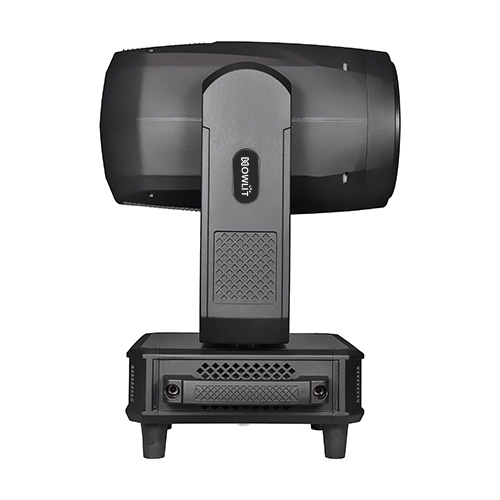

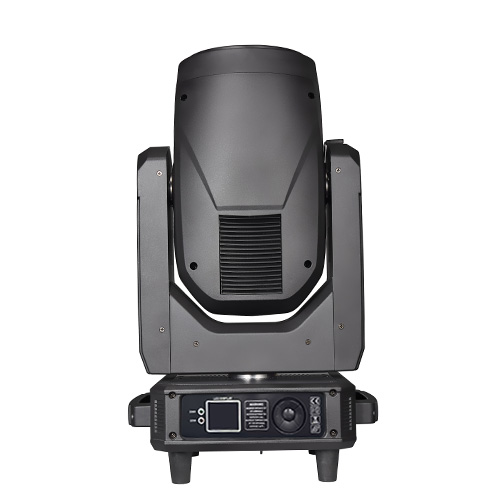

380W Osram Beam Moving Head Light

380W Osram Beam Moving Head Light

380W OSRAM Beam Light with OSRAM 371 emits 3.8° beam at 8000K, 14-color wheel, 17 gobos, advanced prisms & linear frost for layered aerial effects.

Brand model :
QR-B380A
Input voltage :
AC100V-240V, 50/60Hz
Light source :
OSRAM 371W Lamp
Color wheel :
14+1
Product size :
33*27*57cm
Net weight :
16.5KG
Protection level :
IP20
Channel mode :
16CH

Inquiry Now

Function Description

380W OSRAM Beam Moving Head Light Equipped with an original OSRAM 371 light source, this fixture emits a razor-sharp 3.8° beam at 8000K, delivering outstanding brightness and long-throw performance. It features a 14-color wheel and 17 dynamic gobos for vibrant rainbow effects and versatile motion. Advanced prism options—including 8-facet and 8+8+8 combinations—paired with linear frost create dense, multi-layered aerial beams, perfect for high-impact professional touring stages.

Technical parameters

Light Source System

Light source: OSRAM 371
Color temperature: 8000K
Lamp life: 1,500 hours

Optical System

Beam range: 3.8°

Color System

Color wheel: 1 independent color wheel with 14 colors; supports stepping and linear color switching; enables half-color effects.
Rainbow Effect: Ultra-vibrant rainbow effect.

Gobo system

Static gobo wheel: 17 metal gobos + white, featuring variable speed jitter/shake effect.

Effect

Prism: One 8-facet prism + one 8+8+8-facet prism; supports prism overlapping/stacking; each prism allows independent bidirectional rotation.
Strobe: Ultra-high-speed strobe.
Frost: Linear frost/atomization for natural and soft light spots.

Pan&Tilt

Pan/Tilt Movement:540°/270°
Precision: 16-bit fine-tuning with automatic position correction.

Electrical & Interface

Input voltage: AC 100V-240V, 50/60Hz
Rated power: 500W
Ballast: electronic/Inductive ballast
Signal interface: 3-pin XLR Input/Output

Control & Programming

Control channels: 16CH
Control protocols: International standard DMX512, Auto-run, Master-Slave.
Display: 1.8-inch LCD screen; bilingual (Chinese/English) OS; 180° reversible display.
Power saving/sleep: Automatically enters sleep mode when the signal is disconnected.
Firmware upgrade: Software updates available via DMX signal cable.
Cooling system: High-efficiency cooling system with intelligent variable-speed fans and built-in temperature sensors for automatic adjustment.

Fixture Structure

Housing: Flame-retardant nylon, high-temperature resistant.
Operating temperature: -20°C to 40°C
IP rating: IP20

Size & weight

Product size: 33 x 27 x 57 cm
Net weight: 16.5 kg
