Home LED Effect Lights

Waterproof 48+48 Segment Pixel Strobe Bar Light

IP67 waterproof pixel strobe bar light with 864 LEDs for stage and architectural lighting

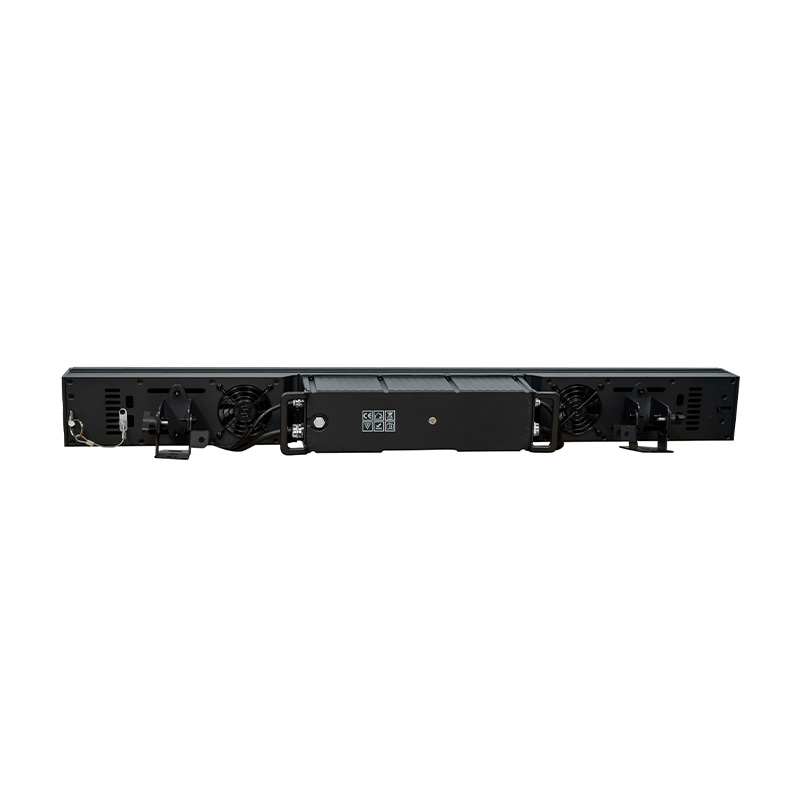

Waterproof 48+48 pixel LED strobe bar light with IP67 rating for outdoor stage lighting

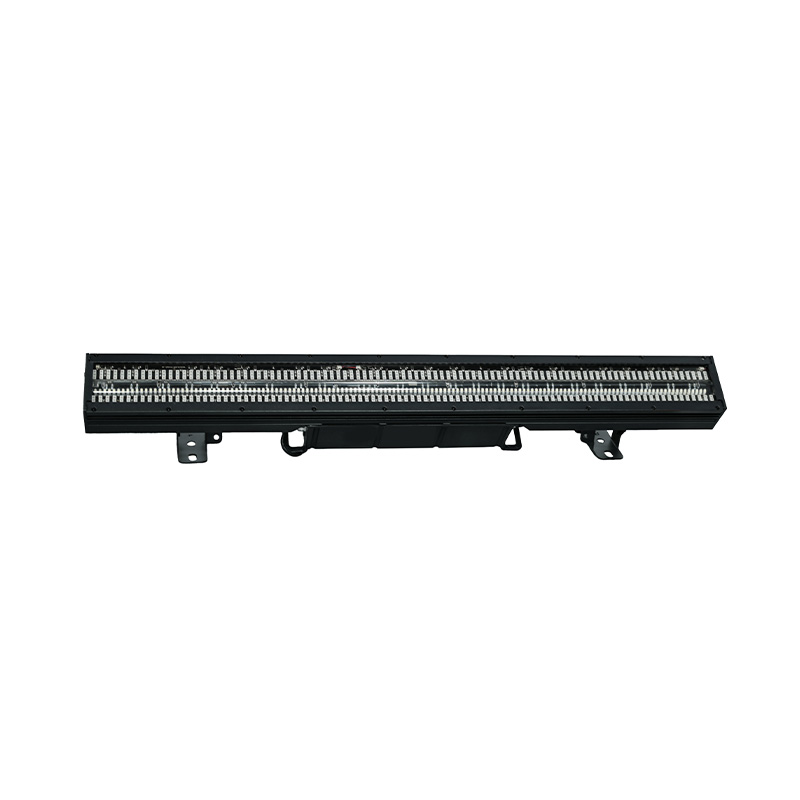

Professional waterproof LED pixel strobe bar for stage visuals and wall wash

Waterproof 48+48 Segment Pixel Strobe Bar Light

IP67 48+48 Pixel Strobe Bar Light with IP67 protection,864 LEDs and 96 pixel segments,delivering strong strobe,chase and smooth wall-wash effects for stages.

Brand model :
QR-MX002
Input voltage :
AC100V–240V, 50/60 Hz
Light source :
864 LEDs, 96 segments
Protection level :
IP67
Channel mode :
CH4, CH14, CH50, CH62, CH96, CH98, CH99, CH192, CH194

Inquiry Now

Function Description

Waterproof 48+48 Pixel Strobe Bar Light is designed for stage and outdoor visual applications.Featuring an IP67-rated housing,it is fully dustproof and waterproof, making it ideal for high-intensity outdoor use.Equipped with 864 high-brightness LEDs and 96 independently controllable pixel segments,it delivers powerful chase and strobe effects while also providing excellent wall-wash performance with smooth,even brightness and wide coverage.Perfect for stage main visuals,background lighting,and architectural façade illumination,it makes any scene stand out instantly.

Technical parameters

Light Source System

Light source: 864 LEDs, 96 segments
LED life: >20,000 hours

Color System

Uniform RGBW color mixing system with rainbow Effect
Creates dynamic visuals and rich color variations

Effect

Strobe rate: 1–30 Hz
Dimming: 16-bit, 0–100% linear dimming
Features: Chase Effect and burst strobe

Electrical & Interface

Strobe rate: 1–30 Hz
Dimming: 16-bit, 0–100% linear dimming
Features: Chase Effect and burst strobe

Control & Programming

Channels: CH4, CH14, CH50, CH62, CH96, CH98, CH99, CH192, CH194
Control modes: DMX512, auto, master/slave, sound active, with RDM function

Fixture Structure

Housing material: Metal, black finish
Protection level:IP67
Working environment：-20°C to 45°C

Size and weight

Product size:
Net weight:
