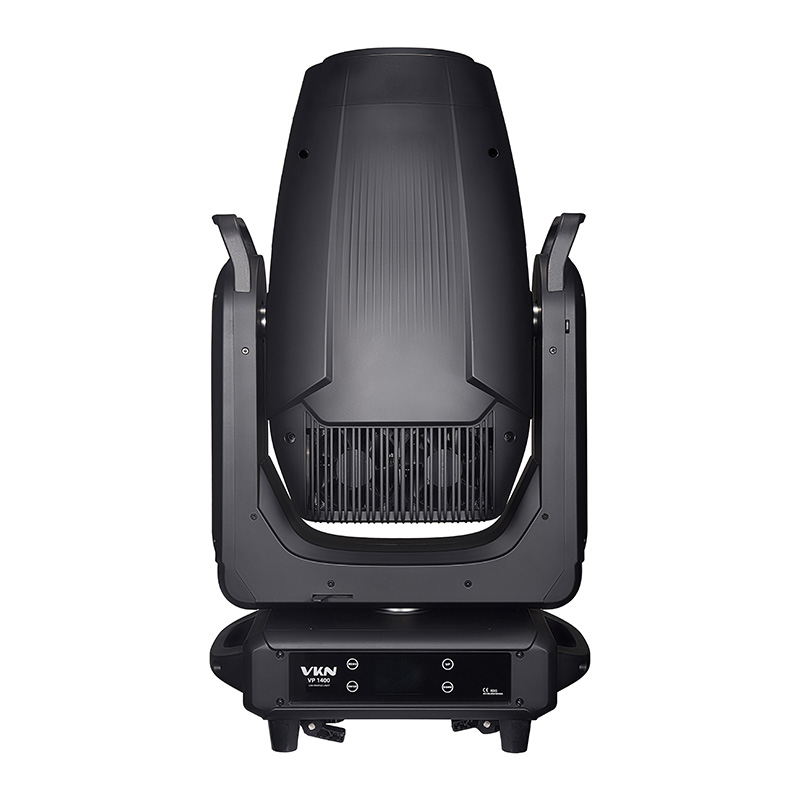

VP1400 1400W LED 4-in-1 Profile Moving Head Light

Light Source System

• Light source specification: 1200W LED module
• Light source color temperature: 6500K
• Light source life:  >20,000 hours
• CRI: standard mode Ra >70, high display mode >90 (switchable)

Optical System

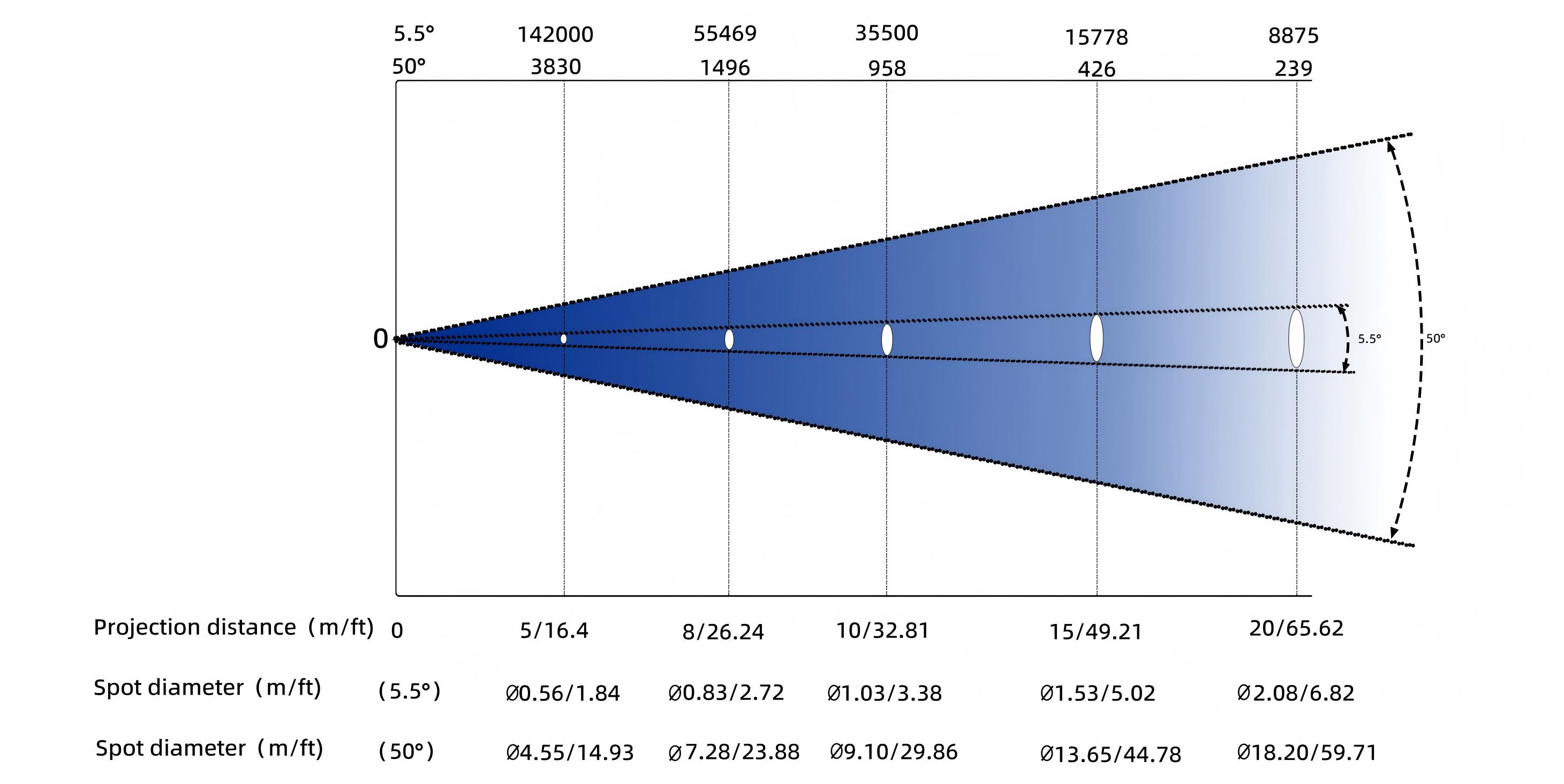

• Zoom range: electron linear zoom 5.5-50 degrees
• Lens diameter：148mm
• Lux：142,000 Lux @5m

Color System

• Plug-in CMY continuous color mixing
• Plug-in linear CTO color temperature correction (6500–2600K)
• 1 independent 6-color wheel with stepped and linear color change modes, including adjustable rainbow effect

Gobo system

• Rotating Gobo Wheel: 7 interchangeable glass gobos, each can rotate forwards and backwards independently
• Fixed Gobo Wheel: 7 metal gobos + open, with variable-speed jitter effect

Cutting System

• 4 independent cutting blades, individually controllable to create different product sizes and geometric shapes, rotatable 120°

Effect

• Independent effect disc
• Prism: 4-facet prism and 4-facet linear prism, independently bi-directional rotation
• Dimming: 0-100% linear adjustment
• Strobe: multiple speed electronic strobe effects
• Frost: 2 independent frost plates, 1 light 0–100% frost effect, 1 medium 0–100% linear frost effect, producing natural soft beam
• Electric aperture: 5-100% rapid linear adjustment

Pan &Tilt

• Pan/Tilt movement:540°/270°
• Automatically return to its original position and perform 16-bit precision fine-tuning
• A magnetic encoder positioning system is adopted

Electrical & Interface

• Input voltage: AC100V-240V, 50/60Hz
• Rated Power: 1450W
• Signal interface: 3-core+5-core XLR signal input/output

Control & Programming

• Channel mode: 39/41CH
• Control Protocols: DMX512/RDM, optional NFC, Art-Net
• Display mode: 2.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
• Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
• Software upgrade: software can be upgraded via DMX signal cable
• Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system

Fixture Structure

• Product appearance: nylon flame-retardant, heat-resistant, with folding clamps
• Working environment: -20 ° C to 40 ° C
• Protection level: IP20

Size & Weight

• Dimensions: 50.9 × 28.8 × 74 cm
• Net Weight: 33.7 kg
