Function Description

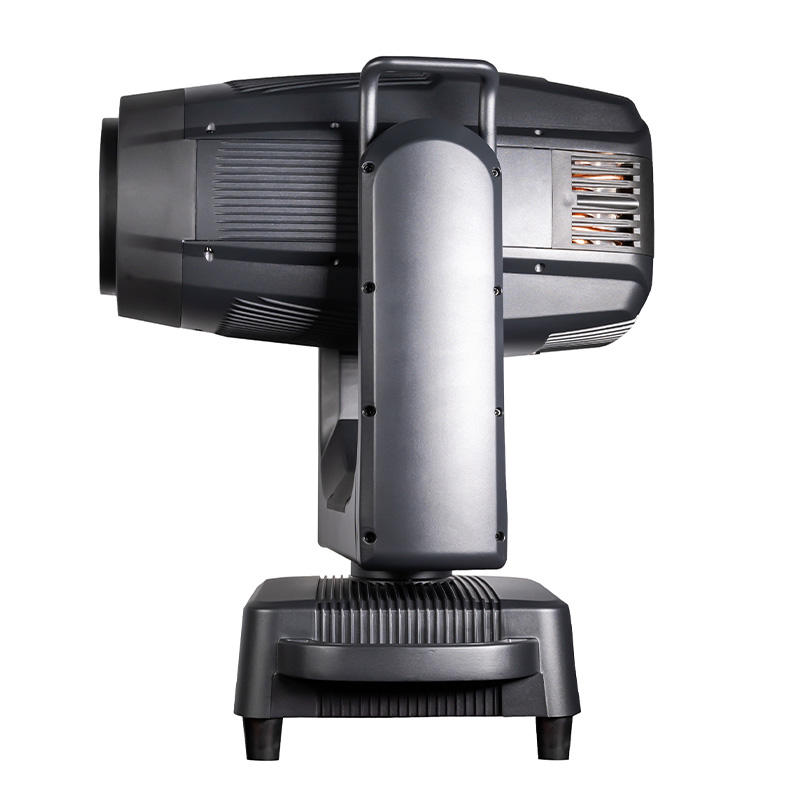

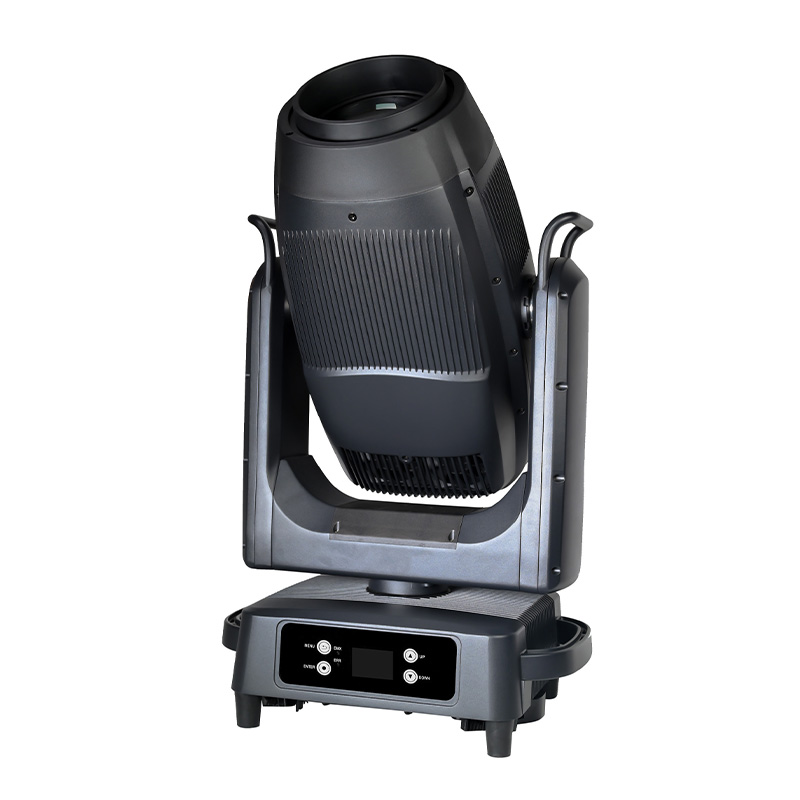

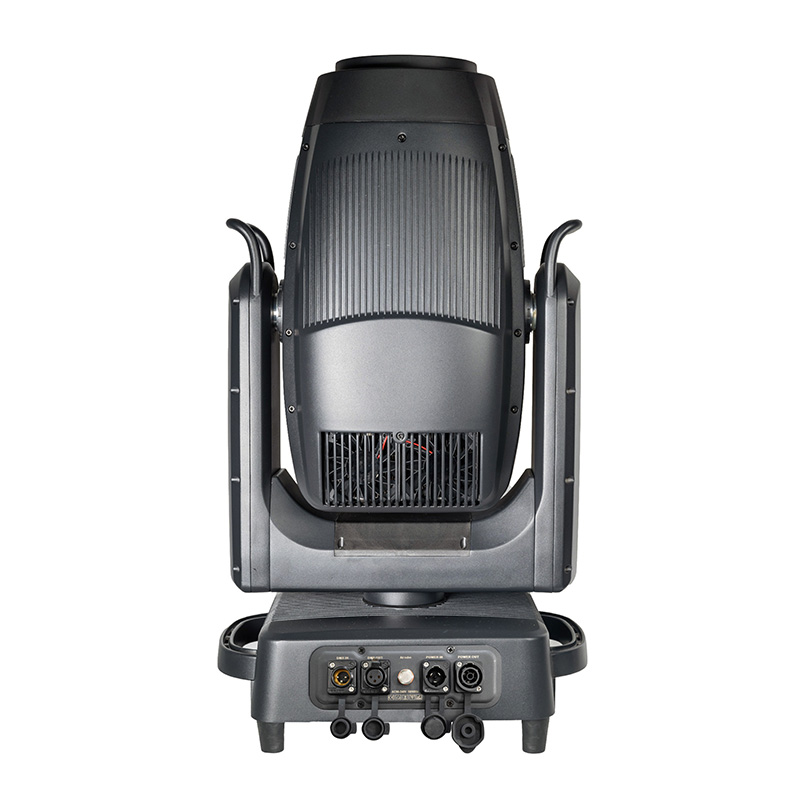

IP66 1000W LED BSWF 4-in-1 Waterproof Moving Head Light integrates beam, wash, pattern, and frame functions into one unit, supporting one‑click switching between standard and high color‑rendering modes. With a 4°–50° linear high‑speed zoom, it delivers clear and uniform lighting effects whether for focused spotlighting or wide‑area illumination.
The fixture housing is made of lightweight yet robust die‑cast magnesium alloy, combined with an IP66 high‑level protection rating, ensuring all‑weather stable operation in harsh environments such as rain, wind, and dust. It features a rich array of built‑in effects including CMY color mixing, linear CTO color temperature correction, dual pattern wheels, dynamic effects, a prism system, independent framing shutters, frost diffusion, and strobe functions. The light also supports dual‑axis magnetic‑encoded positioning for precise horizontal and vertical movement.
Designed to balance portability and professional performance, it is particularly suitable for cultural tourism lighting projects, outdoor live performances, and similar applications. With its outstanding versatility and all‑weather reliability, this moving head light provides a solid foundation for creative lighting presentations.
Technical parameters
Light Source System
- Light source specification: 880W LED module
- Color temperature: 7487K
- Light source life: 20000 hours
- CRI: standard mode Ra >70, high display mode >90 (switchable)
Optical System
- Zoom range: electron linear zoom 4-50 degrees
- Lens diameter:138mm
- Lux:16100Lux@10m

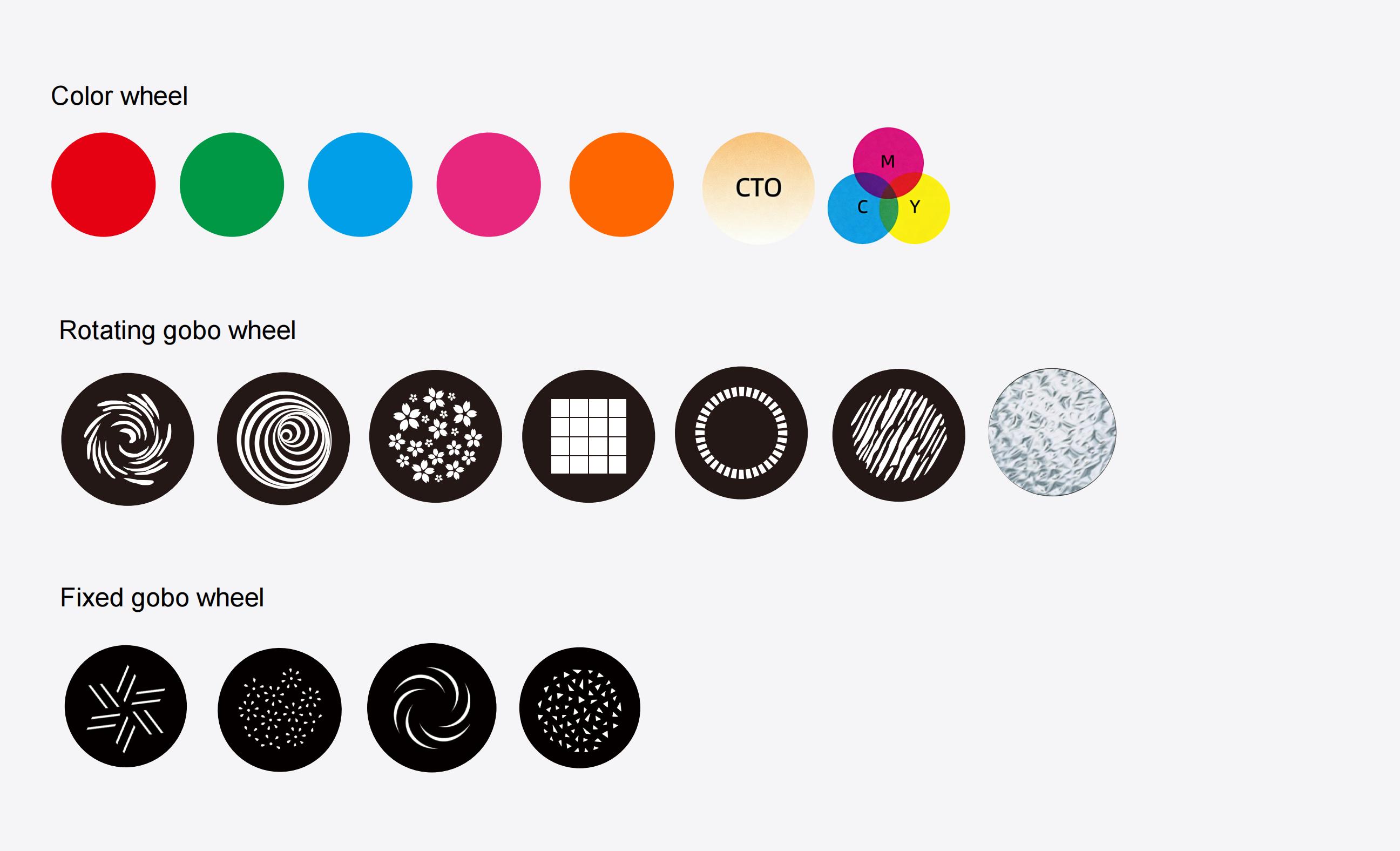

Color System
- Independent CMY color mixing system
- Linear CTO color temperature correction (7000-2600K)
- 1 Independent Color Wheel with 5 Colors, featuring step and linear color-changing modes, and an adjustable-speed rainbow water effect
Gobo system
- Rotating gobo wheel: 7 pluggable glass gobos, each gobo can rotate independently in both directions
- Gobo sheet size: outer diameter 30mm±0.2mm, inner diameter 16mm, thickness 1.1mm
- Fixed gobo wheel: 4 fixed gobos+white, which can change speed and shake
Cutting System
- 4 independent cutting blades, each can be controlled individually to produce geometric shapes of different sizes and forms, and capable of 90°rotation
Effect
- Dynamic effect wheel: super cool simulation of dynamic and moving flames, gurgling water and other dynamic effects
- Prism: 3 facet prisms, can rotate independently in both directions
- Dimming: 0-100% linear adjustment
- Strobe: multiple speed electronic strobe effects
- Frost: 1 independent frost , 0-100% frost, natural and soft light spot
- Electric aperture: 6-100% rapid linear adjustment
Pan &Tilt
- Pan/Tilt Movement:540°/270°
- Automatically return to its original position and perform 16-bit precision fine-tuning
- A magnetic encoder positioning system is adopted
Electrical and Interface
- Input voltage: AC100V-240V, 50/60Hz
- Rated power: 1000W

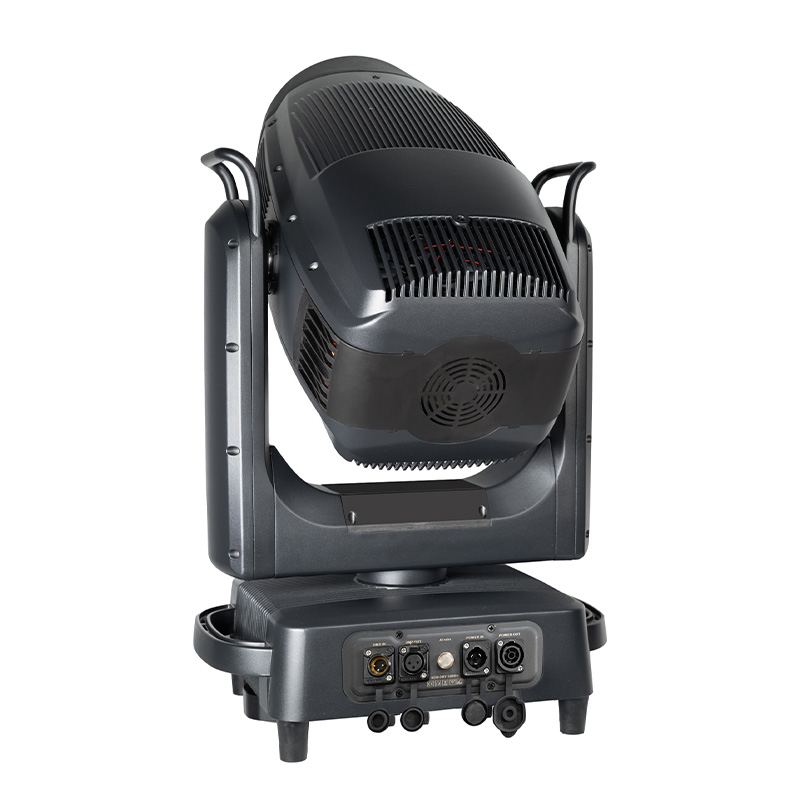

- Signal interface: Optional 3-core/5-core XLR signal input/output
Control & Programming
- Channel mode: 38/41CH
- Control protocol: DMX512/RDM protocol
- Display mode: 2.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
- Energy-Saving Sleep Mode: automatically enters sleep state when the signal is disconnected, ensuring safety and energy efficiency
- Software upgrade: can be upgraded via DMX signal cable
- Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system
Fixture Structure
- Product appearance: adopts high-end casing made of international standard die-cast aluminum and aviation-grade die-cast magnesium alloy
- Working environment: -20 ° C to 40 ° C
- Protection level: IP66
Size & Weight
- Product size: 41*28*66cm (L*W*H)
- Net weight: 28kg
