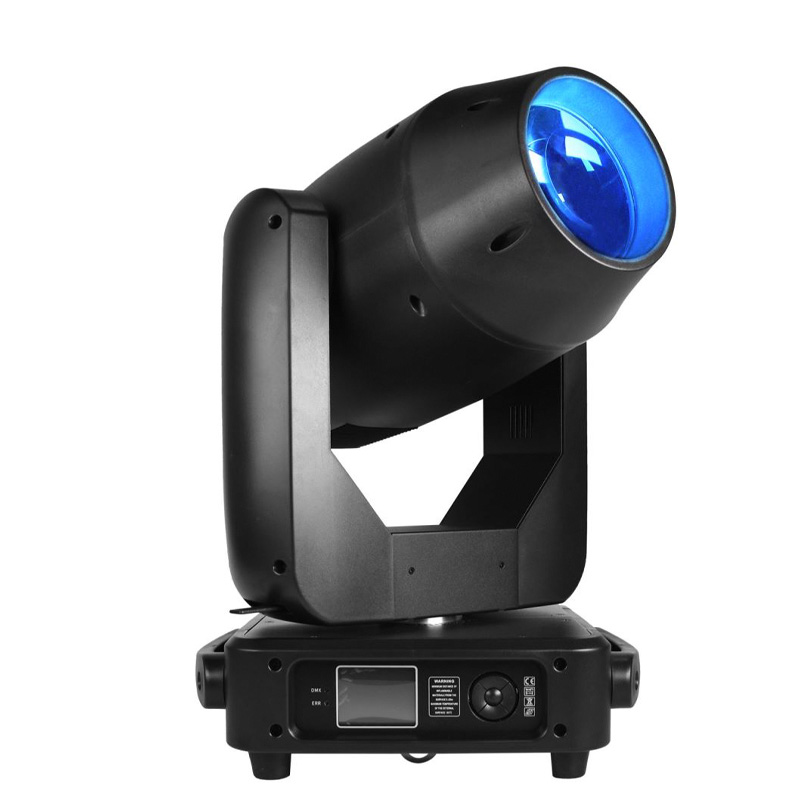

400W BSW 3in1 Osram Moving Head Light

400W Osram 371W Beam Wash Spot Moving Head Light

400W BSW 3in1 Osram Moving Head Light

400W BSW 3in1 Osram Moving Head Light integrates beam, gobo and color mixing. Equipped with Osram 371, 26300Lux@10m high efficiency for long-lasting bright light. Featuring 0-100% linear dimming,dual gobo wheels & dual prisms, creates rich dynamic light effects.

Brand model :
QR-BS400
Input voltage :
AC100V-240V, 50/60Hz
Light source :
OSRAM 371W lamp
Color wheel :
8+1/CTO
Product size :
38*27*66cm
Net weight :
21kg
Protection level :
IP20

Inquiry Now

Function Description

400W BSW 3in1 Osram Moving Head Light Integrating three core functions of beam,wash and spot in one unit.It adopts high-quality OSRAM 371W lamp,with the entire lamp color temperature reaching up to 7500K.At a distance of 10 meters, the illuminance is as high as 26,300 Lux, providing a long-lasting and bright lighting experience.Equipped with 0-100% linear dimming, multi-level electronic stroboscopic function,1 independent fogging plate, 1 fixed gobo disk, 1 rotating gobo disk,an 8 facet prisms and 6 facet prisms,it can flexibly create dynamic light and shadow effects with rich layers,and creativity is not restricted.The body is lightweight and portable,and it can be easily adapted to performance activities, wedding ceremonies, bar atmosphere creation,and conference activities.

Technical parameters

Light Source System

Light source specification:OSRAM 371W lamp
Light source color temperature: 7500K
Light source life: 1500 hours

Optical System

Zoom range: electron linear zoom 5-40 degrees
Lens diameter：130mm
Lux：26300 Lux@10m

Color System

Linear CTO color temperature correction (7400-3200K)
1 Independent Color Wheel with 8 Colors, featuring step and linear color-changing modes

Gobo system

Rotating gobo wheel: 7 pluggable glass gobos, each gobo can rotate independently in both directions
Gobo sheet size: outer diameter 30mm±0.2mm, inner diameter 14mm, thickness 1.1mm
Fixed gobo wheel: 11 fixed gobos+white, which can change speed and shake

Effect

Prism: 8 facet prisms and 6 facet prisms, can rotate independently in both directions
Dimming: 0-100% linear adjustment
Strobe: multiple speed electronic strobe effects
Frost: 1 independent frost , 0-100% frost, natural and soft light spot

Pan & Tilt

Pan/Tilt Movement:540°/270°
Automatically return to its original position and perform 16-bit precision fine-tuning
Pan and Tilt adopt a precise photoelectric coupling positioning system

Electrical & Interface

Input voltage: AC100V-240V, 50/60Hz
Rated power: 520W
Signal interface: 3-coreXLR signal input/output

Control & Programming

Channel mode: 22CH
Control protocol: standard DMX512/RDM protocol
Display mode: 2.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
Software upgrade: software can be upgraded via DMX signal cable
Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system

Fixture Structure

Product appearance: nylon flame-retardant, heat-resistant, with folding clamps
Working environment: -20 ° C to 40 ° C
Protection level: IP20

Size & Weight

Product size: 38*27*66cm (L*W*H)
Net weight: 21kg
