VP1400 IP66｜IP66 High-Output 4-in-1 LED Profile Moving Head

NOWLIT VKN VP1400 IP66 is a high-output LED 4-in-1 profile moving head developed for outdoor concerts, festivals, touring, professional rental applications, and large-scale outdoor projects.

Combining Beam, Spot, Wash, and Framing functions in one fixture, it provides greater creative possibilities for lighting designers through the combination of different functions. The optical system is equipped with dual gobo wheels, dual prisms, dual frost, an independent effect wheel, and a 120° framing system, together with pluggable CMY + CTO, offering multiple lighting effects including gobo projection, beam, wash, and framing.

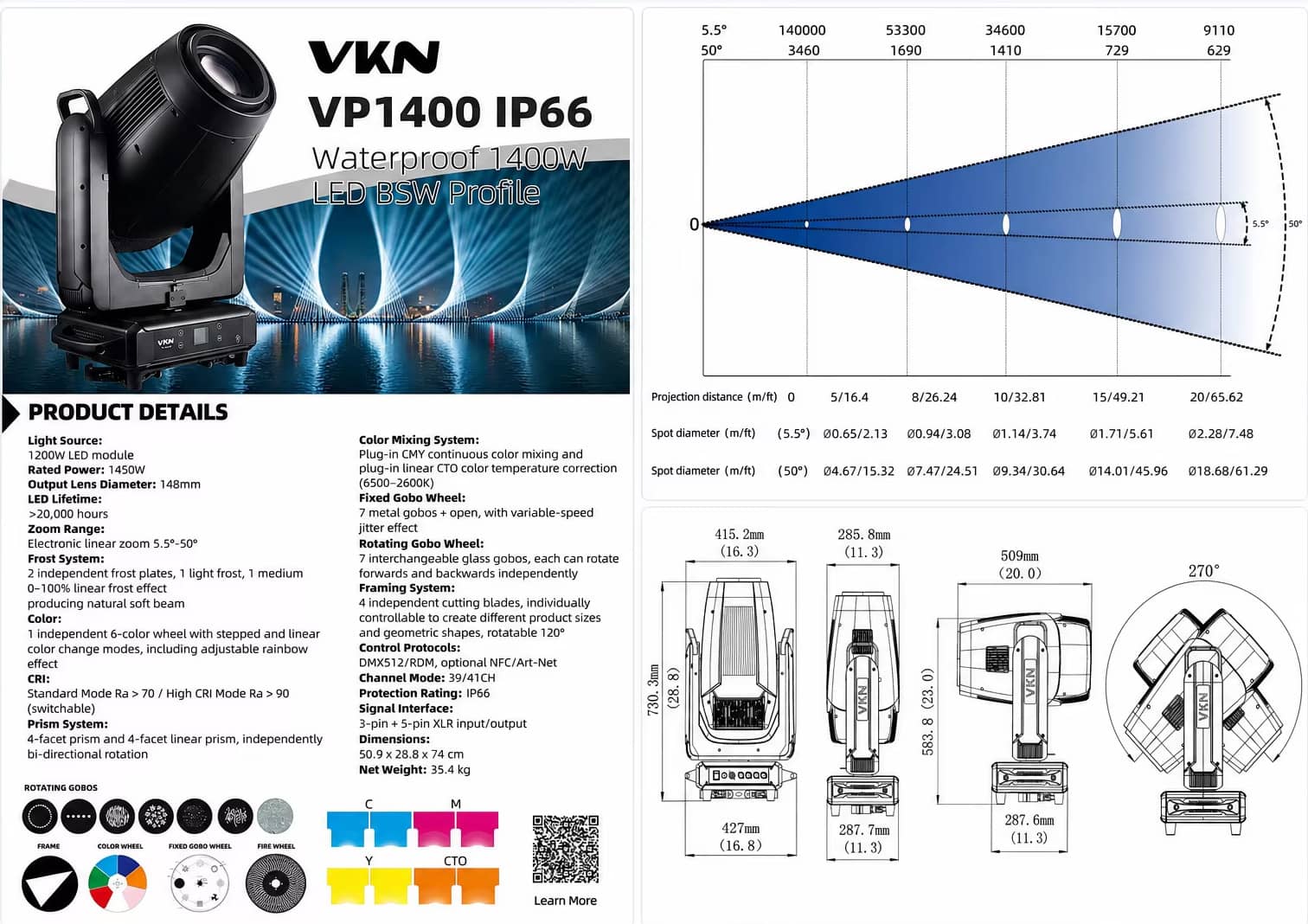

VP1400 IP66 Product Details

In addition to its versatile optical performance, VP1400 IP66 also focuses on outdoor protection, long-term operation, touring transportation, and maintenance efficiency. From the optical system to the overall structure, every aspect is designed around professional show and rental applications.

Reliability Testing｜For Outdoor Use and Long-Term Operation

VP1400 IP66 has undergone multiple reliability tests during the R&D and production stages, including:

Airtightness testing
Low-temperature freezing testing
High-pressure waterproof testing
High- and low-temperature cycling testing
48-hour continuous aging testing
Full-power long-duration operation testing
Transportation vibration testing

Through different testing conditions, the fixture's sealing performance, environmental adaptability, operating stability, and structural reliability are verified, with test data used for further optimization of the product structure and components.

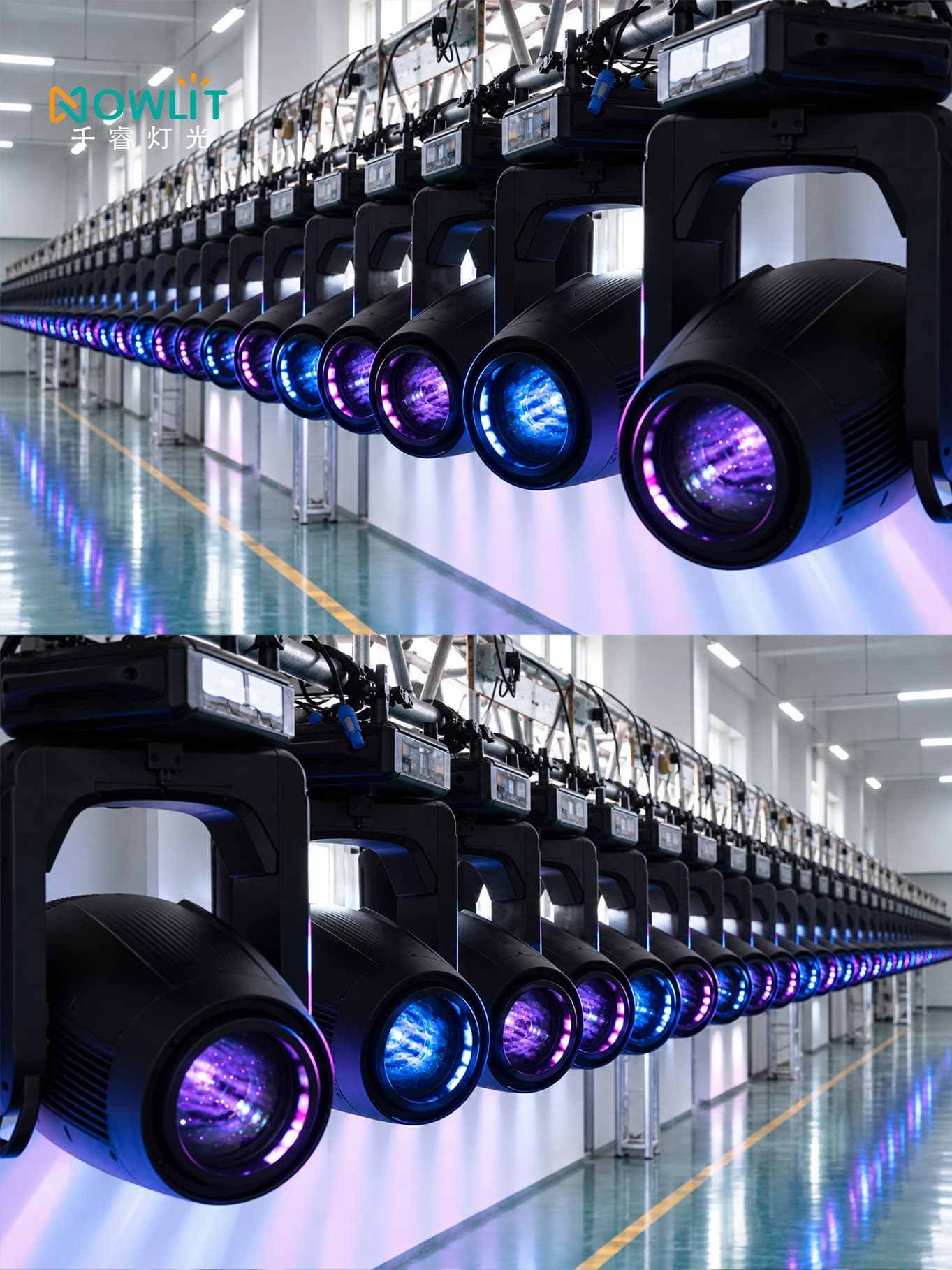

VP1400 IP66｜Aging Test

High Output and Engineering-Oriented Design

VP1400 IP66 delivers a maximum luminous flux of up to 43,105 lm. While providing high-output performance, the fixture has a net weight of approximately 35 kg and adopts a compact structure and modular layout, balancing transportation, rigging, setup, and frequent handling in touring and rental projects, while also making maintenance, troubleshooting, and component replacement easier for technicians.

On the production side, NOWLIT has established a mature supply chain and quality control system, with continuous selection and control of core optical components, light sources, and supporting components. The focus is on ensuring specification consistency, supply stability, and batch production capability.

The fixture comes standard with folding lamp hooks and a safety rope storage box, meeting the installation and operational requirements of professional projects.

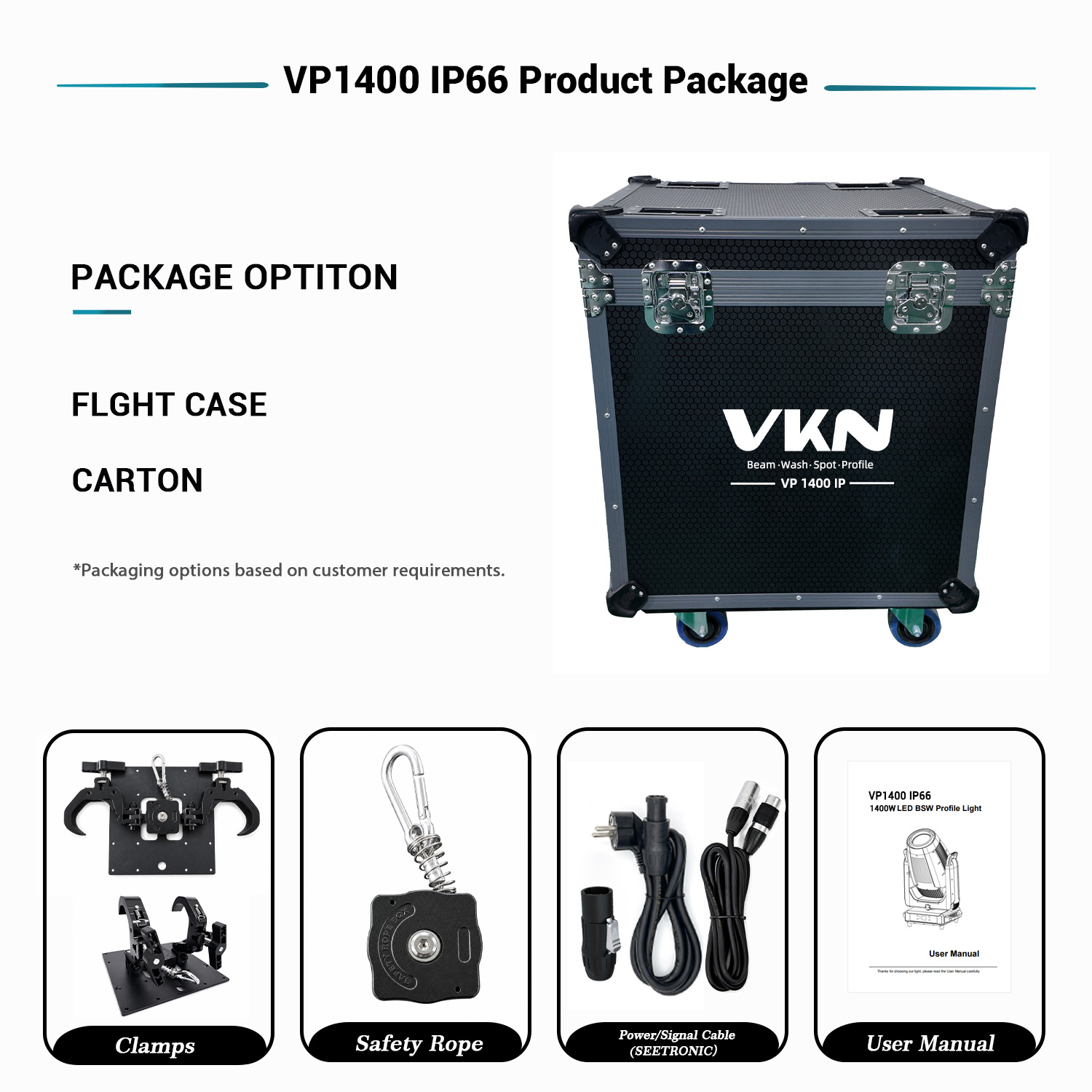

VP1400 IP66 Accessories Overview

Professional Applications

1400W-Class LED｜Beam + Spot + Wash + Framing｜IP66｜Approx. 35 kg

VP1400 IP66 is suitable for outdoor concerts, festivals, touring, professional rental applications, large-scale outdoor events, and theaters.

To meet different application requirements, it provides High Output Mode, Silent Mode, Theater Mode, and Smart Mode, and supports different dimming frequency selections, allowing flexible adjustment according to the site environment, noise requirements, output requirements, and camera shooting needs.

The IP66 protection structure has undergone multiple reliability tests and can adapt to complex outdoor environments such as rain and low temperatures.

Welcome to Test the Fixture

Professional lighting fixtures are not only about specifications. Their optical performance, structural design, and long-term operating condition also need to be verified through actual testing.

You are welcome to visit the NOWLIT factory for hands-on testing and on-site evaluation.

Live Demo｜On-Site Measurement｜Hands-On Operation

NOWLIT VKN Professional Series

VKN is NOWLIT's professional stage lighting product line, supported by in-house R&D, structural design, complete fixture manufacturing, and quality inspection capabilities. It focuses on the continuous development of LED stage lighting equipment for professional shows, touring and rental applications, and large-scale outdoor projects.

VP1400 IP66

Built to travel. Built to work. Built to last.

Learn More About VP1400 IP66

For more product information, technical specifications, and pricing, please contact NOWLI

FAQ

Q:What is the maximum luminous flux of the VP1400 IP66?

A:The VP1400 IP66 delivers a maximum luminous flux of up to 43,105 lm, providing high-output performance for large-scale professional lighting applications.

Q:What reliability tests has the VP1400 IP66 undergone?

A:Testing includes airtightness testing, low-temperature freezing testing, high-pressure waterproof testing, high- and low-temperature cycling, 48-hour continuous aging, full-power long-duration operation, and transportation vibration testing.

Q:What operating modes are available?

A:The VP1400 IP66 provides High Output Mode, Silent Mode, Theater Mode, and Smart Mode for different operating environments and application requirements.

Q:Can the VP1400 IP66 be used for camera and broadcast applications?

A:The fixture supports different dimming frequency selections, allowing users to adjust the operating settings according to lighting output, environmental conditions, noise requirements, and camera shooting needs.
