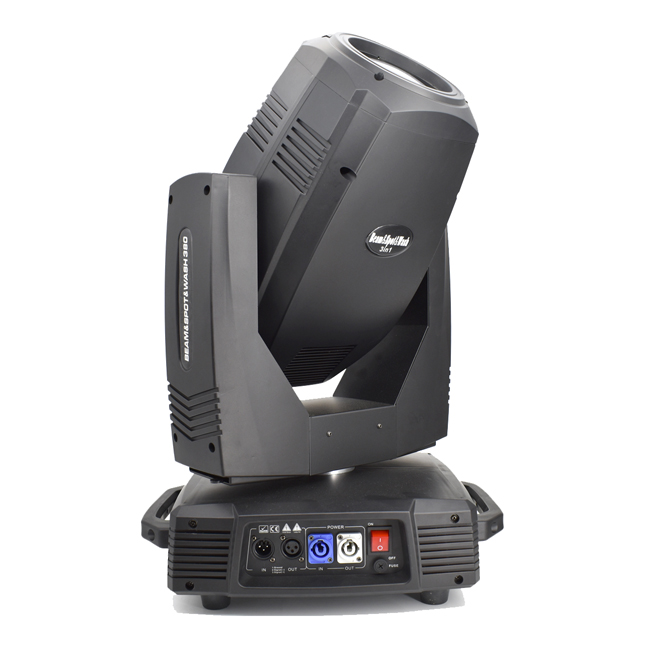

QR-BS380 380W 3in1 Beam Spot Wash Light

Item No.: QR-BS380
380W 3in1 Beam Pattern Moving Head Light
Product parameters
Light Source: 380W
Materail: Metal Frame + Die-Case Plastic Cover
DMX Channel: 19/24CH
IP Rating: IP20
HS Code: 9405409000
Payment Terms: L/C, T/T, Western Union, Paypal

Power supply: AC90V-240V 50Hz -60 Hz
Power Consumption: 500W
Lamp: Osram 371W
Color temperature: 9000K
lamp life: 500-800 hours (manufacturer rated service life) , working 1500 hours
1 Color wheel: 13 color + white light effect, variable continuous rotation color plate can produce rainbow effect in any direction.
1 fixed gobo wheel: 14 fixed gobos + white light, the gobos can be shaken.
1 rotating gobo wheel: 8 glass rotating patterns + white light with a clockwise counterclockwise rotation effect
1pc 8 prism
1 linear 6 prism; can be rotated in the forward and revers e directions and has a prism positioning function
Double prism stacking, prism rotation effect (8+16,, 16+24, 8+24 can be customized)
1 frost mirror with frost wash effect.
Focusing:  electronic linear zoom  and electronic linear zoom system.
Zoom in: zoom 0-3.9 degrees, electronic focus 20 meters. Optical device, combined  optical  lens
Strobe and dimmer: The fast action strobe can quickly interrupt the beam and achieve 1-10 strobe effects per second. There is also a dimming effect.
Motor: Consisting of a precision three-phase stepper motor controlled by a built-in microprocessor.
Lamp house: It is formed by the combination of engineering plastic shell, streamlined design and beautiful appearance.
The 540° horizontal rotation is 270° vertical rotation, both of which are micro step accurate.
Control channel: 19CH/24CH, touch screen , international standard DMX512 control signal
Working environment: indoor, -20 ° C ~ 50 ° C
Shell: high-strength temperature-resistant engineering plastic shell and metal powder spray technology, streamlined design.
Light body size: 42x30x63cm
Packing size: 55x56x60cm
Net weight: 23KG
Gross weight: 25kg
Flycase size: 78x48x83cm, weight 70kg
